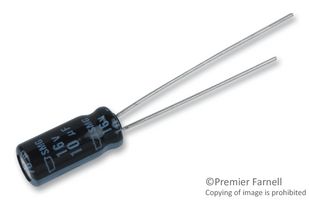

ESMG160ELL100ME11D

UNITED CHEMI-CON  ESMG160ELL100ME11D  铝电解电容, 10uF, 16V, 径向引线

Cap Aluminum Lytic 10uF 16V 20% 5 X 11mm Radial 2mm 50mA 2000h 85°C Bulk

得捷:
CAP ALUM 10UF 20% 16V RADIAL

e络盟:
铝电解电容, 10uF, 16V, 径向引线

艾睿:
By using pure aluminum foil in the anode, this electrolytic ESMG160ELL100ME11D aluminum capacitor from United Chemi-con can easily filter low frequencies. It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. The ESMG160ELL100ME11D aluminum electrolytic capacitor has a radial termination style. Its leakage current is 4.8@1Min μA. Its capacitance value is 10uF. It has a tolerance of 20%. This part has a lead diameter of 0.5 mm and a pitch of 2 mm. This product is 11 mm tall with a diameter of 5 mm.

Verical:
Cap Aluminum Lytic 10uF 16V 20% 5 X 11mm Radial 2mm 50mA 2000h 85C Bulk

Newark:
# UNITED CHEMI-CON  ESMG160ELL100ME11D  Electrolytic Capacitor, Miniature, 10 µF, 16 V, SMG Series, ± 20%, Radial Leaded, 5 mm

MASTER:
Cap Aluminum Lytic 10uF 16V 20% 5 X 11mm Radial 2mm 50mA 2000h 85°C Bulk

Online Components:
Cap Aluminum Lytic 10uF 16V 20% 5 X 11mm Radial 2mm 50mA 2000h 85°C Bulk

Electro Sonic:
Cap Aluminum Lytic 10uF 16V 20% 5 X 11mm Radial 2mm 50mA 2000h 85°C Bulk
