EKMG100ELL332MK20S

UNITED CHEMI-CON  EKMG100ELL332MK20S  铝电解电容； 3300uF

3300 µF 10 V 铝电解器 径向，Can - 105°C 时为 1000 小时

得捷:
CAP ALUM 3300UF 20% 10V RADIAL

e络盟:
铝电解电容； 3300uF

艾睿:

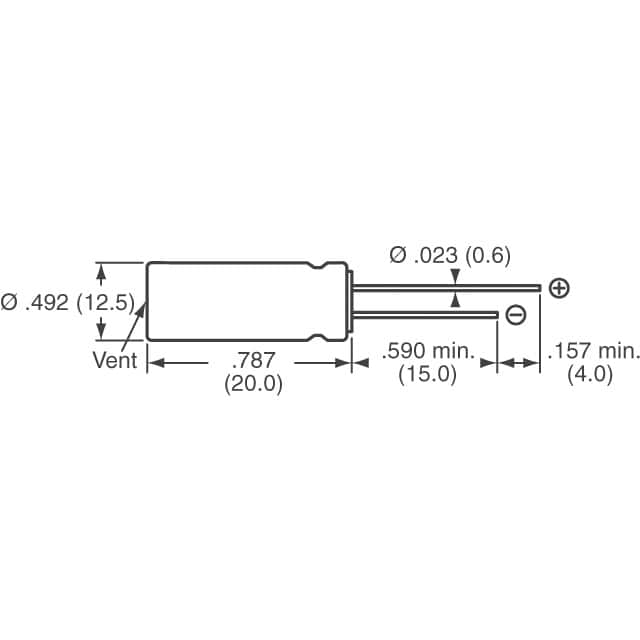

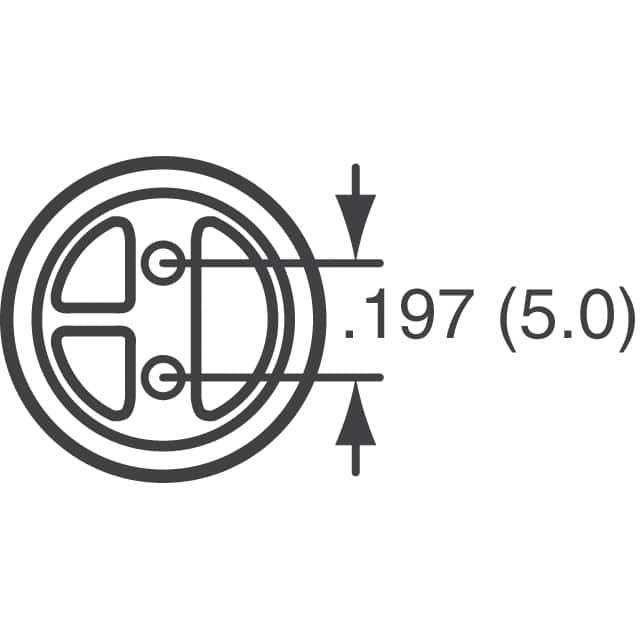

By using pure aluminum foil in the anode, this electrolytic EKMG100ELL332MK20S aluminum capacitor from United Chemi-con can easily filter low frequencies. It can withstand a voltage of 10 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its leakage current is 990@1Min μA. Its capacitance value is 3300uF. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. This product is 20 mm tall with a diameter of 12.5 mm. It has a tolerance of 20%. The EKMG100ELL332MK20S aluminum electrolytic capacitor has a radial termination style.

Chip1Stop:
Cap Aluminum Lytic 3300uF 10V 20% 12.5 X 20mm Radial 5mm 1000mA 1000h 105℃ Bulk

Verical:
Cap Aluminum Lytic 3300uF 10V 20% 12.5 X 20mm Radial 5mm 1000mA 1000h 105C Bulk

Newark:

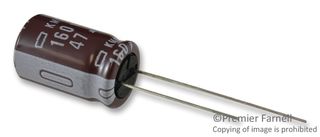

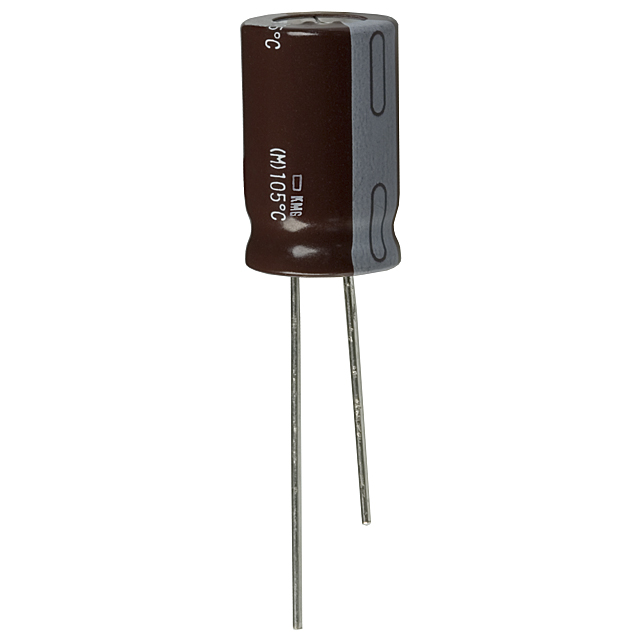

# UNITED CHEMI-CON  EKMG100ELL332MK20S  Electrolytic Capacitor, Miniature, 3300 µF, 10 V, KMG Series, ± 20%, Radial Leaded, 12.5 mm

MASTER:
Cap Aluminum Lytic 3300uF 10V 20% 12.5 X 20mm Radial 5mm 1000mA 1000h 105°C Bulk

Electro Sonic:
Cap Aluminum Lytic 3300uF 10V 20% 12.5 X 20mm Radial 5mm 1000mA 1000h 105°C Bulk
