ESMG6R3ELL332MJ20S

UNITED CHEMI-CON  ESMG6R3ELL332MJ20S  铝电解电容； 3300uF

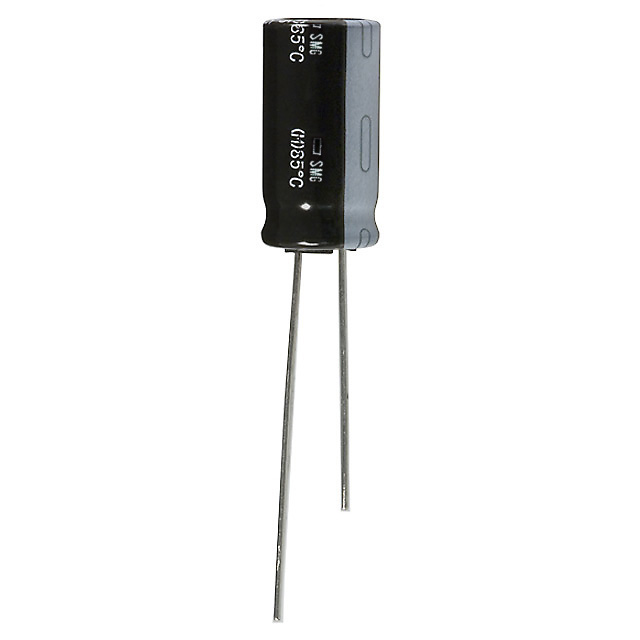

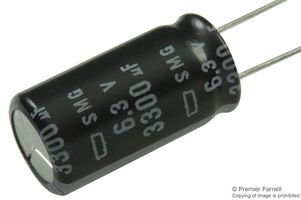

3300µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C

得捷:
CAP ALUM 3300UF 20% 6.3V RADIAL

e络盟:
铝电解电容； 3300uF

艾睿:
Are you looking for a capacitor that is low cost, high capacitance and has a high energy density? Then this electrolytic ESMG6R3ELL332MJ20S aluminum capacitor from United Chemi-con is the one for you! It can withstand a voltage of 6.3 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. The ESMG6R3ELL332MJ20S aluminum electrolytic capacitor has a radial termination style. This product is 20 mm tall with a diameter of 10 mm. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. Its leakage current is 623.7@1Min μA. Its capacitance value is 3300uF. It has a tolerance of 20%.

Chip1Stop:
Cap Aluminum Lytic 3300uF 6.3V 20% 10 X 20mm Radial 5mm 1185mA 2000h 85℃ Bulk

Verical:
Cap Aluminum Lytic 3300uF 6.3V 20% 10 X 20mm Radial 5mm 1185mA 2000h 85C Bulk

Newark:
# UNITED CHEMI-CON  ESMG6R3ELL332MJ20S  Electrolytic Capacitor, Miniature, 3300 µF, 6.3 V, SMG Series, ± 20%, Radial Leaded, 10 mm

MASTER:
Cap Aluminum Lytic 3300uF 6.3V 20% 10 X 20mm Radial 5mm 1185mA 2000h 85°C Bulk

Electro Sonic:
Cap Aluminum Lytic 3300uF 6.3V 20% 10 X 20mm Radial 5mm 1185mA 2000h 85°C Bulk
