EKZE250ELL681MJ20S

UNITED CHEMI-CON  EKZE250ELL681MJ20S  铝电解电容, 680uF, 25V, 径向引线

Cap Aluminum Lytic 680uF 25V 20% 10 X 20mm Radial 5mm 1820mA 4000h 105°C Bulk

得捷:
CAP ALUM 680UF 20% 25V RADIAL

贸泽:
铝电解电容器 - 径向引线型 25volts 680uF 10X20

e络盟:
铝电解电容, 680uF, 25V, 径向引线

艾睿:

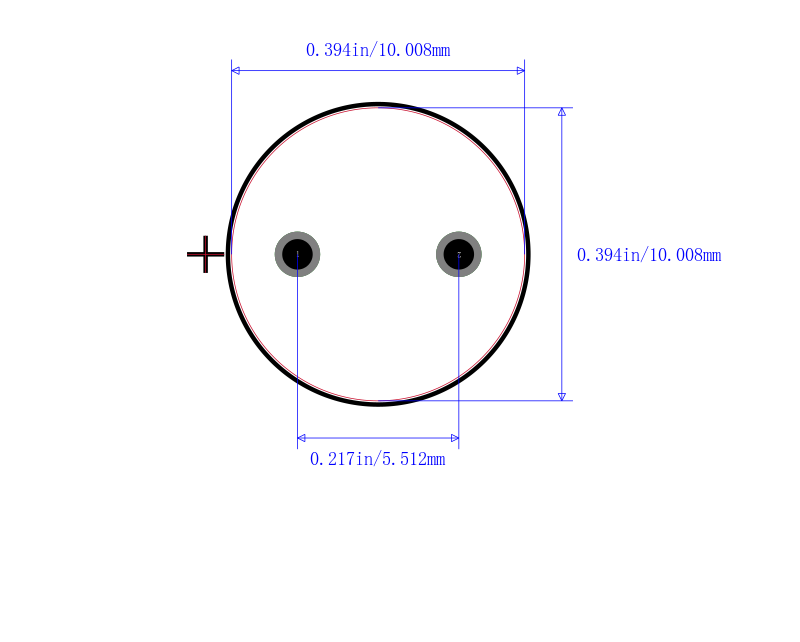

Choose this electrolytic EKZE250ELL681MJ20S aluminum capacitor from United Chemi-con for its relatively high ESR. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 680uF. The EKZE250ELL681MJ20S aluminum electrolytic capacitor has a radial termination style. This product is 20 mm tall with a diameter of 10 mm. Its leakage current is 170@2Min μA. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. It has a tolerance of 20%.

Chip1Stop:
Cap Aluminum Lytic 680uF 25V 20% 10 X 20mm Radial 5mm 1820mA 4000h 105℃ Bulk

Verical:
Cap Aluminum Lytic 680uF 25V 20% 10 X 20mm Radial 5mm 1820mA 4000h 105C Bulk

Newark:
# UNITED CHEMI-CON  EKZE250ELL681MJ20S  Electrolytic Capacitor, Miniature, 680 µF, 25 V, KZE Series, ± 20%, Radial Leaded, 10 mm

MASTER:
Cap Aluminum Lytic 680uF 25V 20% 10 X 20mm Radial 5mm 1820mA 4000h 105°C Bulk

Electro Sonic:
Cap Aluminum Lytic 680uF 25V 20% 10 X 20mm Radial 5mm 1820mA 4000h 105°C Bulk
