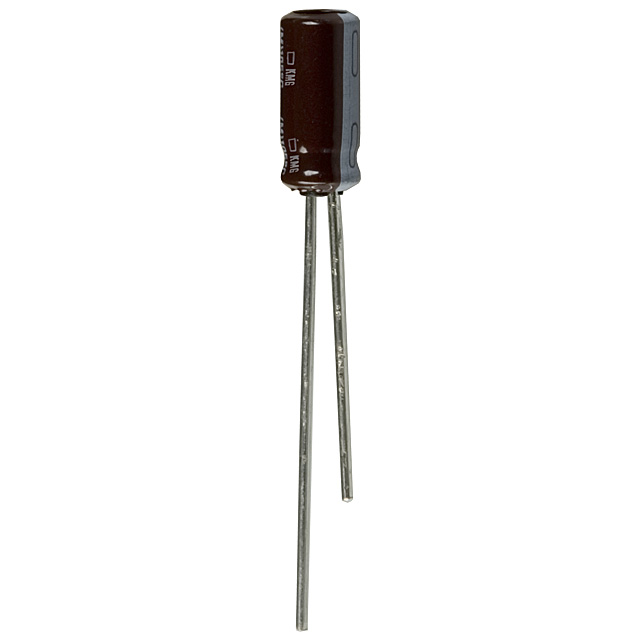

EKMG101ELL4R7ME11D

UNITED CHEMI-CON  EKMG101ELL4R7ME11D  铝电解电容； 4.7uF

Cap Aluminum Lytic 4.7uF 100V 20% 5 X 11mm Radial 2mm 32mA 1000h 105°C Bulk

得捷:
CAP ALUM 4.7UF 20% 100V RADIAL

e络盟:
铝电解电容； 4.7uF

艾睿:
Manufactured from United Chemi-con, this electrolytic EKMG101ELL4R7ME11D aluminum capacitor is made from aluminum foil anode and is ideal for filtering out low frequencies. It can withstand a voltage of 100 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 11 mm tall with a diameter of 5 mm. Its capacitance value is 4.7uF. It has a tolerance of 20%. Its leakage current is 14.1@1Min μA. The EKMG101ELL4R7ME11D aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.5 mm and a pitch of 2 mm.

Verical:
Cap Aluminum Lytic 4.7uF 100V 20% 5 X 11mm Radial 2mm 32mA 1000h 105C Bulk

Newark:
# UNITED CHEMI-CON  EKMG101ELL4R7ME11D  Electrolytic Capacitor, Miniature, 4.7 µF, 100 V, KMG Series, ± 20%, Radial Leaded, 5 mm

MASTER:
Cap Aluminum Lytic 4.7uF 100V 20% 5 X 11mm Radial 2mm 32mA 1000h 105°C Bulk

Electro Sonic:
Cap Aluminum Lytic 4.7uF 100V 20% 5 X 11mm Radial 2mm 32mA 1000h 105°C Bulk
