ESMG500ELL102MK25S

UNITED CHEMI-CON  ESMG500ELL102MK25S  铝电解电容； 1000uF

1000µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C

e络盟:
铝电解电容； 1000uF

艾睿:

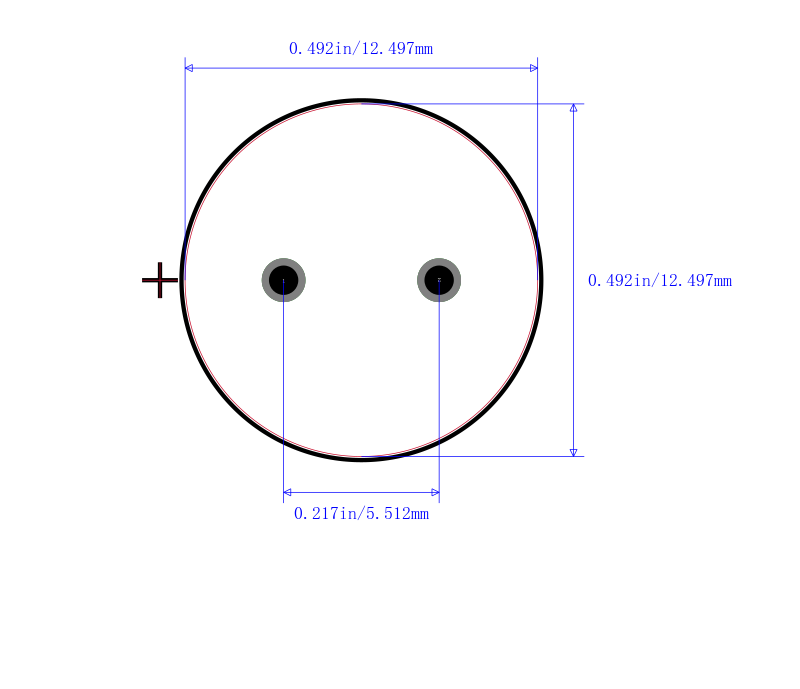

Are you looking for a capacitor that is low cost, high capacitance and has a high energy density? Then this electrolytic ESMG500ELL102MK25S aluminum capacitor from United Chemi-con is the one for you! It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. This product is 25 mm tall with a diameter of 12.5 mm. The ESMG500ELL102MK25S aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 1000uF. Its leakage current is 1500@1Min μA. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. It has a tolerance of 20%.

Verical:
Cap Aluminum Lytic 1000uF 50V 20% 12.5 X 25mm Radial 5mm 1340mA 2000h 85C Bulk

Newark:
# UNITED CHEMI-CON  ESMG500ELL102MK25S  Electrolytic Capacitor, Miniature, 1000 µF, 50 V, SMG Series, ± 20%, Radial Leaded, 12.5 mm

MASTER:
Cap Aluminum Lytic 1000uF 50V 20% 12.5 X 25mm Radial 5mm 1340mA 2000h 85°C Bulk

Electro Sonic:
Cap Aluminum Lytic 1000uF 50V 20% 12.5 X 25mm Radial 5mm 1340mA 2000h 85°C Bulk
