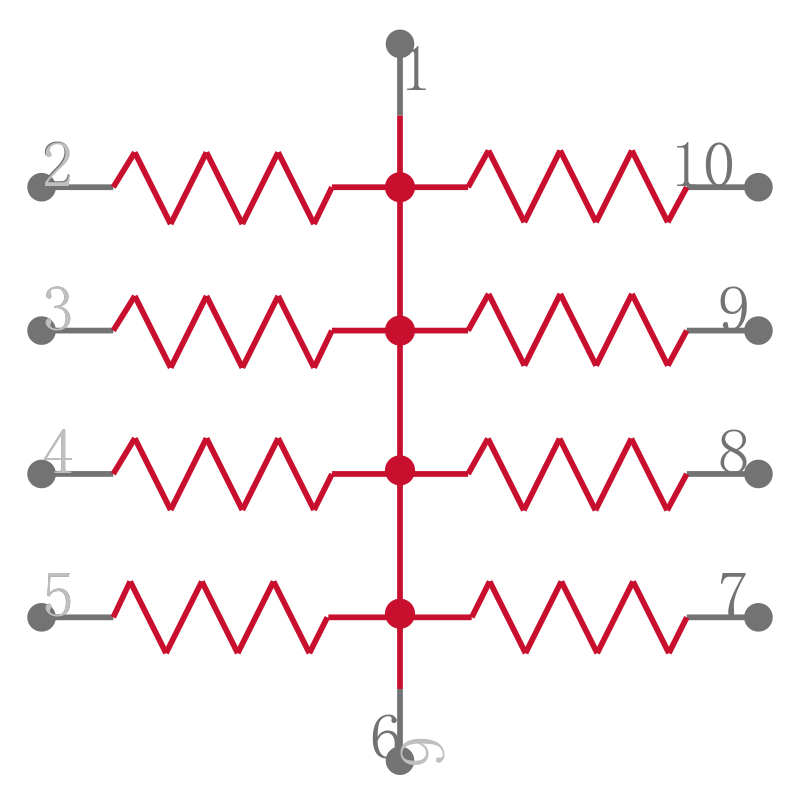

Array/Network Resistor, Bussed, Metal Glaze/thick Film, 0.05W1/20W, 1000Ω, 25V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP
EXB-D10 Series 1206 0.05 W 1 kOhm ±5 % 8 Element SMT Chip Resistor Array
艾睿:

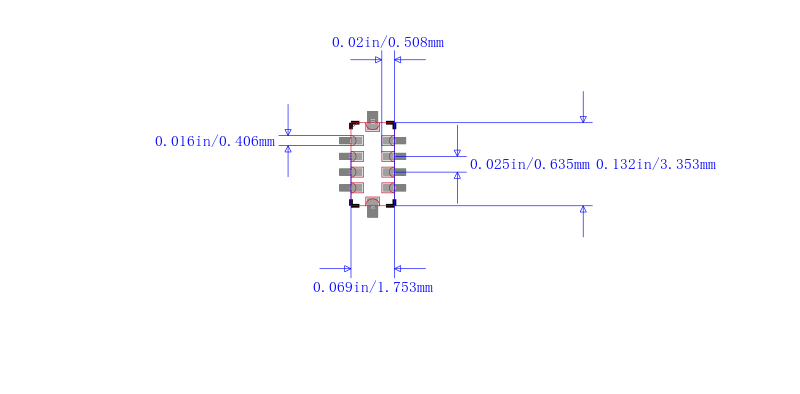

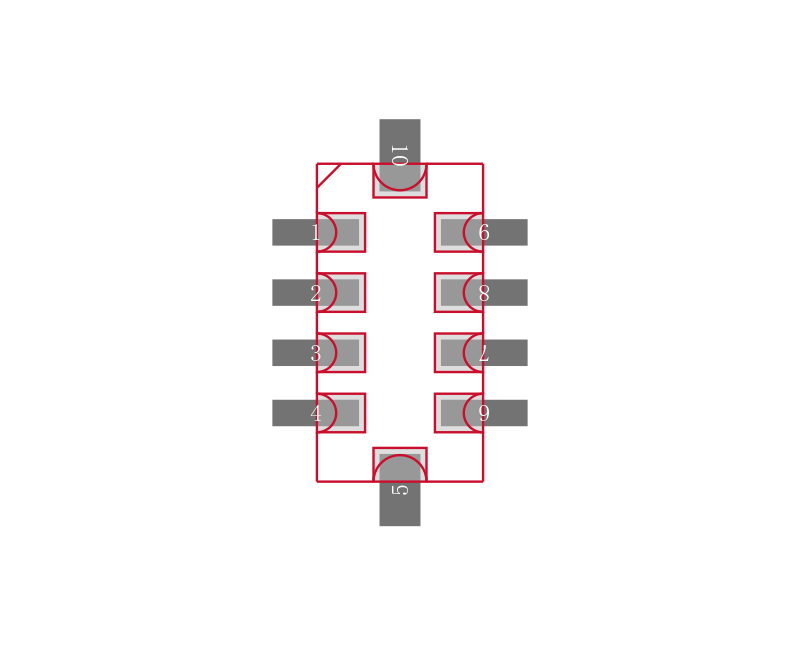

Use this EXB-D10C102J resistor array from Panasonic to conserve space by packing multiple resistors into one IC chip. Its temperature coefficient is ±200 ppm/°C. This dependable part has a power rating per resistor of 0.05 1/20 W. This product&s;s 8 resistors have a value of 1K Ohm. It has 10 terminals. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. The EXB-D10C102J part has a concave termination style. This part has an operating temperature of -55 to 125 °C. This device is made with thick film technology. This product&s;s terminal pitch is 0.64 mm. This product is 3.2 mm long, 0.55 mm tall and 1.6 mm deep. It has a tolerance of 5%.
安富利:
Res Thick Film NET 1K Ohm 5% ±200ppm/°C BUS Molded 10-Pin 1206 Concave SMD Punched Carrier T/R
Chip1Stop:
Res Thick Film NET 1K Ohm 5% 200ppm/ C BUS Molded 10-Pin 3.2 x 1.6 mm Concave SMD Punched Carrier T/R
