EKZE500ELL331MJ25S

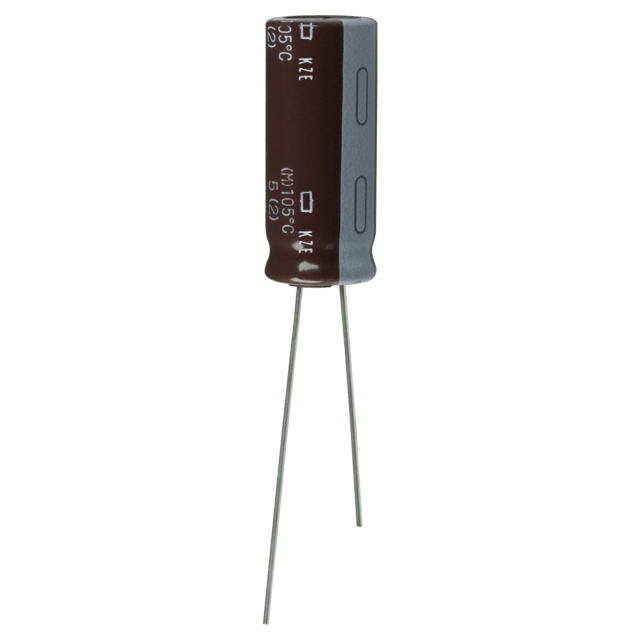

UNITED CHEMI-CON  EKZE500ELL331MJ25S  铝电解电容, 330uF, 50V

Cap Aluminum Lytic 330uF 50V 20% 10 X 25mm Radial 5mm 1870mA 4000h 105°C Bulk

得捷:
CAP ALUM 330UF 20% 50V RADIAL

艾睿:
Choose this electrolytic EKZE500ELL331MJ25S aluminum capacitor from United Chemi-con for its relatively high ESR. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its leakage current is 165@2Min μA. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. The EKZE500ELL331MJ25S aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%. Its capacitance value is 330uF. This product is 25 mm tall with a diameter of 10 mm.

Verical:
Cap Aluminum Lytic 330uF 50V 20% 10 X 25mm Radial 5mm 1870mA 4000h 105C Bulk

Newark:
# UNITED CHEMI-CON  EKZE500ELL331MJ25S  Electrolytic Capacitor, Miniature, 330 µF, 50 V, KZE Series, ± 20%, Radial Leaded, 10 mm

MASTER:
Cap Aluminum Lytic 330uF 50V 20% 10 X 25mm Radial 5mm 1870mA 4000h 105°C Bulk

Electro Sonic:
Cap Aluminum Lytic 330uF 50V 20% 10 X 25mm Radial 5mm 1870mA 4000h 105°C Bulk
