EKZE350ELL221MJC5S

UNITED CHEMI-CON  EKZE350ELL221MJC5S  铝电解电容, 220uF, 35V

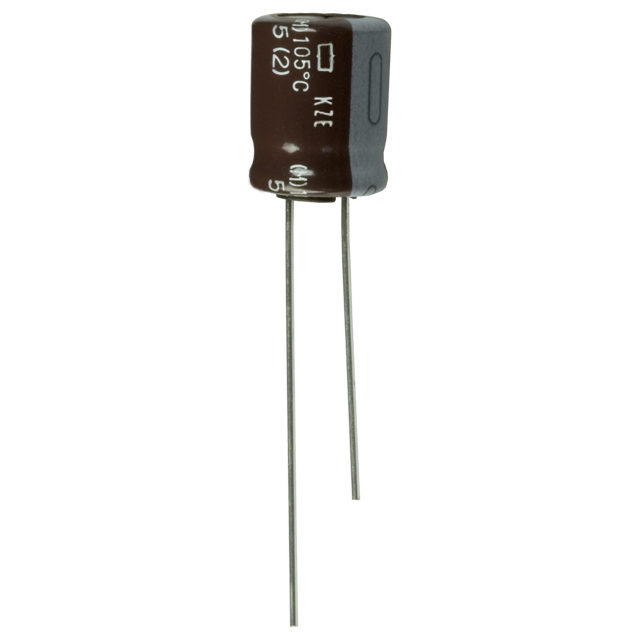

Cap Aluminum Lytic 220uF 35V 20% 10 X 12.5mm Radial 5mm 1030mA 4000h 105°C Bulk

得捷:
CAP ALUM 220UF 20% 35V RADIAL

e络盟:
铝电解电容, 220uF, 35V

艾睿:

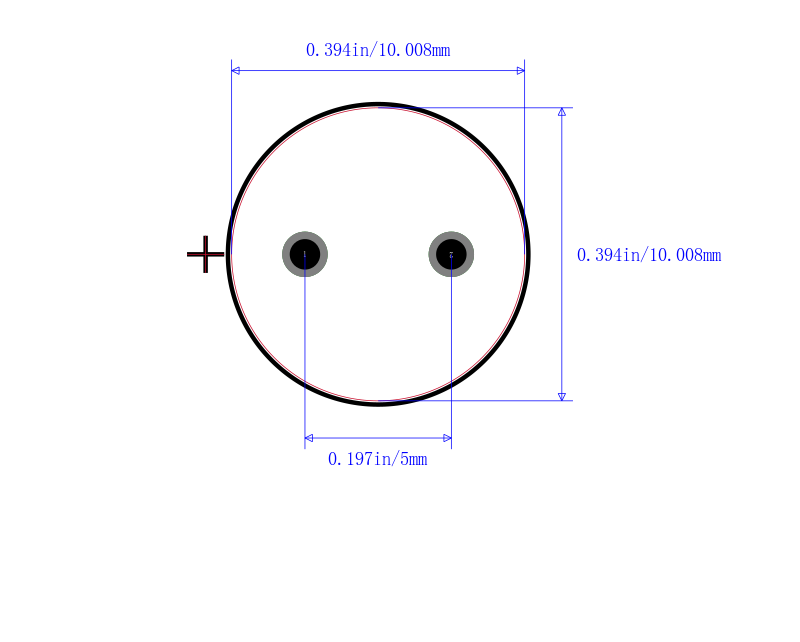

Using the aluminum anode based electrolytic EKZE350ELL221MJC5S electrolytic capacitor, developed by United Chemi-con, you can filter out lower signal frequencies. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 12.5 mm tall with a diameter of 10 mm. Its capacitance value is 220uF. It has a tolerance of 20%. Its leakage current is 77@2Min μA. The EKZE350ELL221MJC5S aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.6 mm and a pitch of 5 mm.

Verical:
Cap Aluminum Lytic 220uF 35V 20% 10 X 12.5mm Radial 5mm 1030mA 4000h 105C Bulk

MASTER:
Cap Aluminum Lytic 220uF 35V 20% 10 X 12.5mm Radial 5mm 1030mA 4000h 105°C Bulk

Electro Sonic:
Cap Aluminum Lytic 220uF 35V 20% 10 X 12.5mm Radial 5mm 1030mA 4000h 105°C Bulk
