EGG.1K.304.CLL

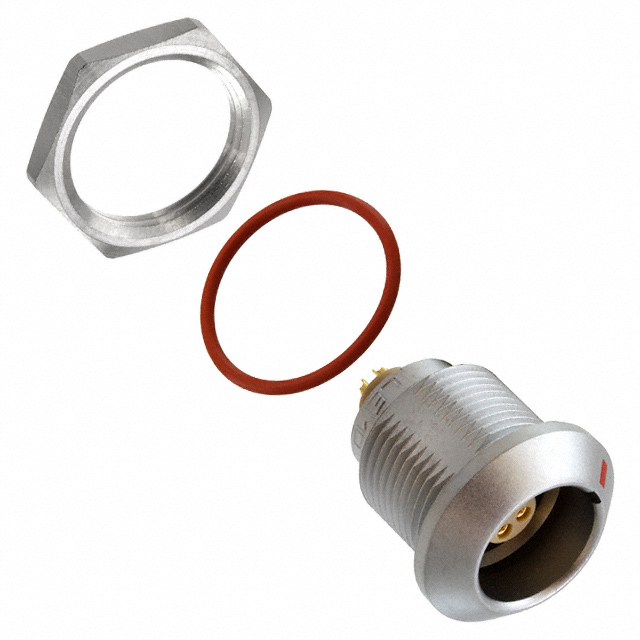

LEMO  EGG.1K.304.CLL  圆形连接器, 1K系列, 插座, 4 触点, 母, 焊接, 面板安装

The 1K series modular Circular Connector offers a solution for most outdoor applications. The integral sealing within both plug and socket offers a watertight connection when mated to IP68. The push-pull latching mechanism provides a secure connection whilst the density of the contacts provides for considerable panel space savings. Multi key options prevent cross mating of similar connectors within a panel. Contact types include LV, fibre optic and coax provides for every eventuality. Hybrids including of any of the above contacts are also available. The ruggedized design combined with precision manufacturing offers excellent durability, reliability and quality.

.

Secure push-pull latching

.

Solder, crimp and PCB contacts

.

Full EMC protection

.

2 to 64 Contacts

.

5000 Mating cycles

.

>144-hour Salt spray

.

Watertight to IP66/IP68

.

-55 to +250°C Temperature range
