EPS300-3/16-6"-BLACK

EPS300-3/16-6"-BLACK图片1
EPS300-3/16-6"-BLACK图片2
EPS300-3/16-6"-BLACK概述

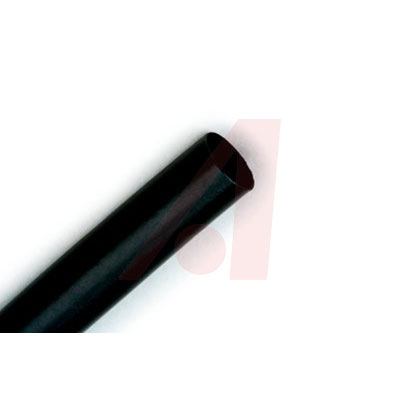

Black Adhesive Lined Heat Shrink Tubing, 4.75mm, 3:1, 15cm Length

EPS 300 Adhesive-Lined Flexible Polyolefin Tubings

The meltable inner wall of EPS-300 forms a moisture proof barrier in one step in the same way as EPS-200, making it the product of choice for outdoor, automotive, or marine applications. The 3:1 shrink ratio helps to seal uneven surfaces such as connectors and components. Jacket meets UL 224 all tubing flame test, -55°C to +110°C continuous operating temperature, meets MIL-DTL-23053/6 Class 3. Black only.

M™ EPS-300 is a thin-wall tubing ffering the advantages of integral, adhesive-lined construction. The tubing made from flame-retardant, flexible polyolefin with an internal layer of special thermoplastic adhesive. The heatshrinkable outer wall is selectively cross-linked, while the adhesive maintains high flow and excellent adhesion characteristics.

EPS300-3/16-6"-BLACK中文资料参数规格
外形尺寸

长度 3.6576 m

物理参数

颜色 Black

材质 Polyolefin

工作温度 -55℃ ~ 110℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

数据手册

在线购买EPS300-3/16-6"-BLACK
型号: EPS300-3/16-6"-BLACK
制造商: 3M
描述:Black Adhesive Lined Heat Shrink Tubing, 4.75mm, 3:1, 15cm Length
