Array/Network Resistor, Bussed, Metal Glaze/thick Film, 0.05W1/20W, 47000Ω, 25V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0612, CHIP

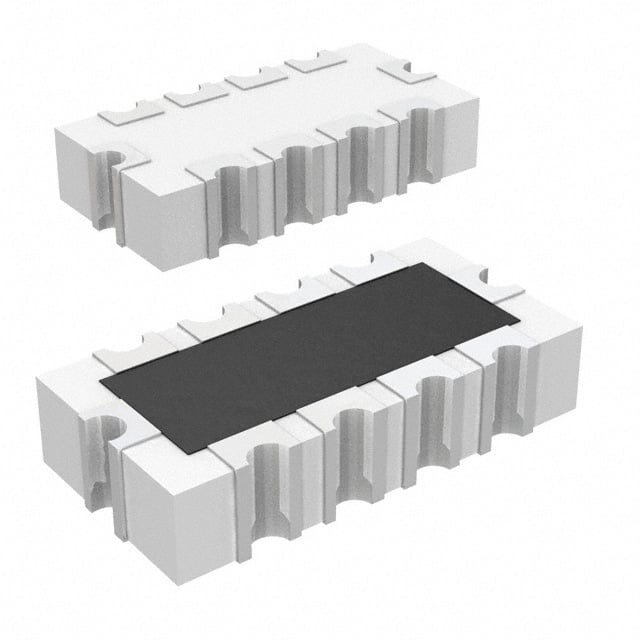

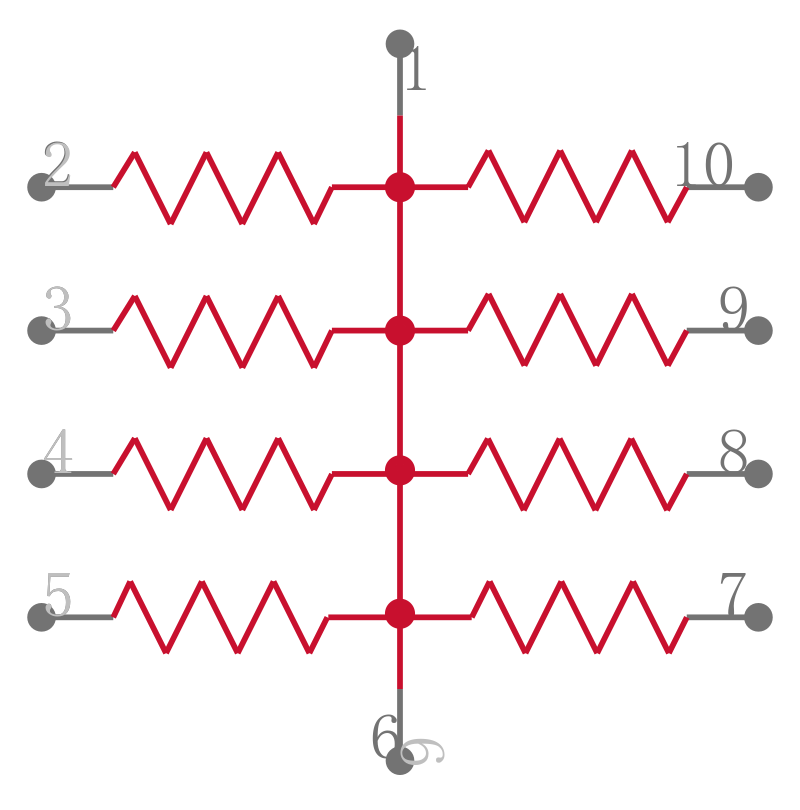

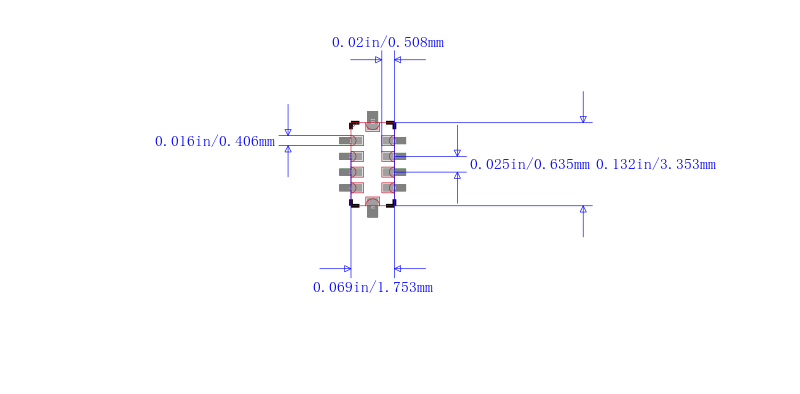

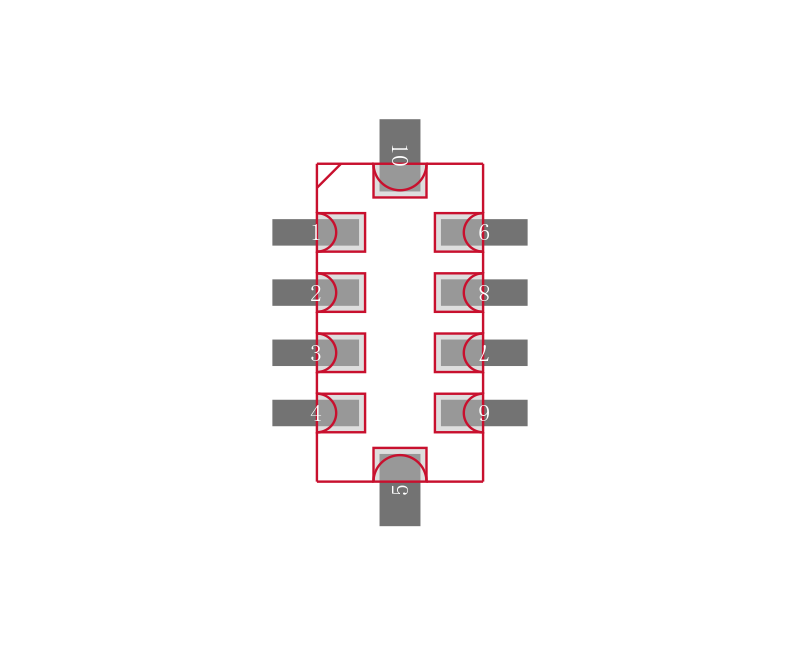

Looking to save space and power in your circuit design? The EXB-D10C473J resistor array from gives you a solution by combining multiple resistors into a single chip. Its temperature coefficient is ±200 ppm/°C. This product"s 8 resistors have a value of 47K Ohm. This dependable part has a power rating per resistor of 0.05 1/20 W. It has 10 terminals. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. The EXB-D10C473J part has a concave termination style. It has a tolerance of 5%. This product is 3.2 mm long, 0.55 mm tall and 1.6 mm deep. This product"s terminal pitch is 0.64 mm. This part has an operating temperature of -55 to 125 °C. This device utilizes thick film technology.
