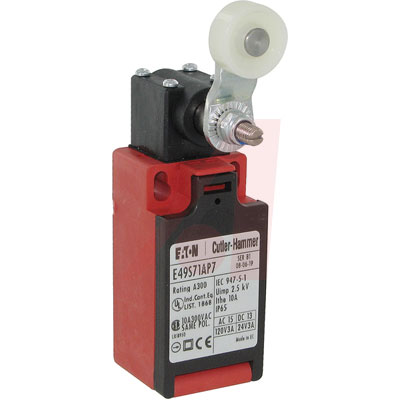

SWITCH; LIMIT; E49 MINIATURE DIN; SIDE ROTARY; E49 PLASTIC; 1NO/1NC
Cutler-Hammer® E49 DIN Limit Switches by Eaton"s electrical business are designed to International standards. Positive opening normally closed contacts, fingerproof wire-ready terminals, double insulated nylon housing, and environmental ratings to NEMA 4, 4X, 6P, 13 — IP65 make E49 the choice in many packaging, material handling, conveying, sorting and counting, positioning and end-of travel applications.
**Features:**
* Positive Opening NC Contacts Improve Reliability by Positively Breaking the NC Contacts During Operation, Eliminating Light
Welding/Sticking Conditions
* Nonmetallic Housing is Ideal for Corrosive Environments — NEMA 4, 4X, 6P, 13 IP65
* "Fingerproof" Terminals and Double Insulated Enclosures Protect Against Accidental Shock
* Generous Wiring Space Speeds Installation
* Electrically Isolated Contacts Eliminate Polarity Restrictions for Electrical Loads
**Ratings and Approvals:**
* UL Listed
* CSA Certified
* IEC 947-5-1
* VDE 0660
* CENELEC — EN50047
* NEMA A300 AC-15
* NEMA R300 DC-13
* IP65
**Specifications:**
* -22°F to 176°F -30°C to 80°C Operating Temperature
* 24-600 VAC Rating NEMA A300
* 24-240 VDC Rating NEMA R300
* 500 V Switching
* 10 A Continuous AC
