二极管与整流器
与整流器
得捷:
DIODE GEN PURP 200V 1A SMA
立创商城:
200V 1A 25ns
贸泽:
整流器 200V 1A
艾睿:
Converting from AC to DC is simple when using a switching diode ES1D-13-F rectifier from Diodes Zetex. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It is made in a single configuration. This rectifier has an operating temperature range of -65 °C to 150 °C. Its peak non-repetitive surge current is 30 A, while its maximum continuous forward current is 1 A.
安富利:
Diode Switching 200V 1A 2-Pin SMA T/R
Chip1Stop:
Diode Switching 200V 1A 2-Pin SMA T/R
TME:
Diode: switching; SMD; 200V; 1A; 25ns; Package: reel, tape; SMA
Verical:
Rectifier Diode Switching 200V 1A 25ns 2-Pin SMA T/R
Newark:
# DIODES INC. ES1D-13-F Fast / Ultrafast Diode, 200 V, 1 A, Single, 920 mV, 25 ns, 30 A
儒卓力:
**SI-DIODE 1A 200V SMA **
Win Source:
DIODE GEN PURP 200V 1A SMA
额定电压DC 200 V
额定电流 1.00 A
电容 20 pF
输出电流 ≤1.00 A
负载电流 1 A
正向电压 0.92 V
极性 Standard
热阻 25 ℃/W
反向恢复时间 25 ns
正向电流 1 A
最大正向浪涌电流(Ifsm) 30 A
正向电压Max 920 mV
正向电流Max 1 A
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2

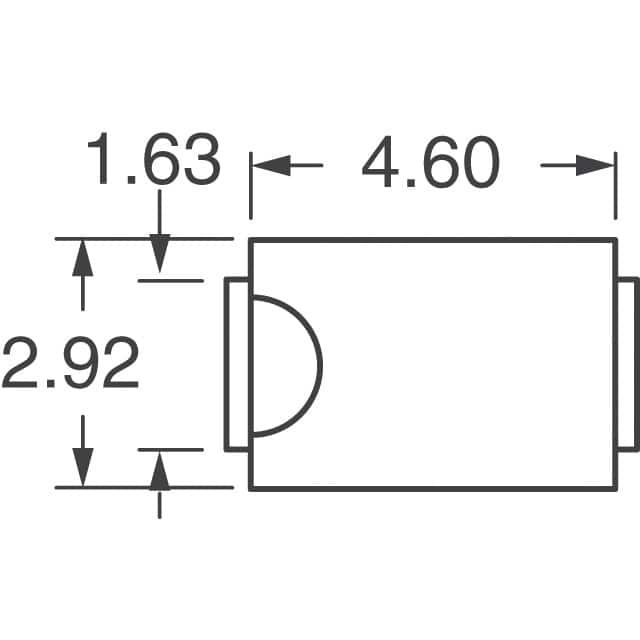

封装 SMA
长度 4.6 mm
宽度 2.92 mm
高度 2.1 mm
封装 SMA
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 军用与航空, 国防
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ES1D-13-F Diodes 美台 | 当前型号 | 当前型号 |
S1D-13-F 美台 | 类似代替 | ES1D-13-F和S1D-13-F的区别 |
US1D-13-F 美台 | 类似代替 | ES1D-13-F和US1D-13-F的区别 |
S1DB-13-F 美台 | 类似代替 | ES1D-13-F和S1DB-13-F的区别 |
