F40J100

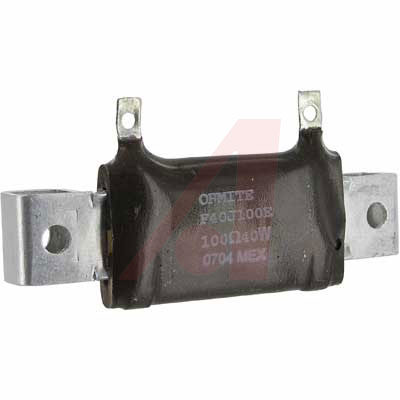

OHMITE F40J100 Through Hole Resistor, Wirewound, 100Ω, 655V, 40W, ± 5%, F40 Series

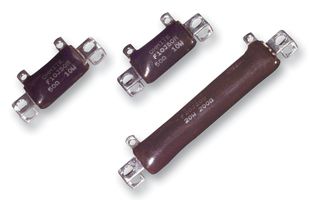

These oval-shaped ceramic core resistors feature vitreous enamel coating and low profile to permit installation in spaces with minimal height. They also are equipped with integral mounting brackets so they can be fastened to a chassis and stacked in locations with limited surface area. When properly fastened, the mounting brackets add a heat sinking benefit resulting in smaller size per watt. The terminals are tinned lug with a hole.

.

*Tolerance:** 5%.

* Small Size to Power Ratio

* Low Profile and Stackable to Conserve Space

* All Welded Construction

* Integral Mounting Bracket Conducts Heat to Mounting Surface
