FAN73711MX

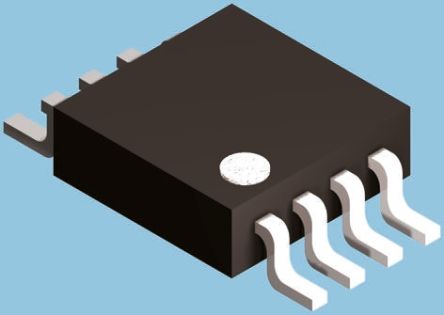

FAIRCHILD SEMICONDUCTOR  FAN73711MX  驱动器, IGBT, MOSFET, 高压侧, 10V-20V电源, 4A输出, 150ns延迟, SOIC-8

The is a monolithic high-side Gate Drive IC for high-power buck converter. It can drive high-speed MOSFETs and IGBTs operating up to +600V. It has a buffered output stage with all NMOS transistors designed for high pulse-current driving capability and minimum cross-conduction. "s high-voltage process and common-mode noise cancelling techniques provide stable operation of the high-side driver under high dv/dt noise circumstances. An advanced level-shift circuit offers high-side gate driver operation up to VS=-9.8V typical for VBS=15V. The UVLO circuit prevents malfunction when VBS is lower than the specified threshold voltage. The high-current and low-output voltage drop feature makes this device suitable for sustain and energy-recovery circuit switch driver in plasma display panel, motor drive inverter and high-power DC-DC converter applications.

.

Common-mode dv/dt noise cancelling circuit

.

Output in-phase with input signal

.

Under-voltage lockout for VBS

.

Built-in shunt regulator on VDD and VBS
