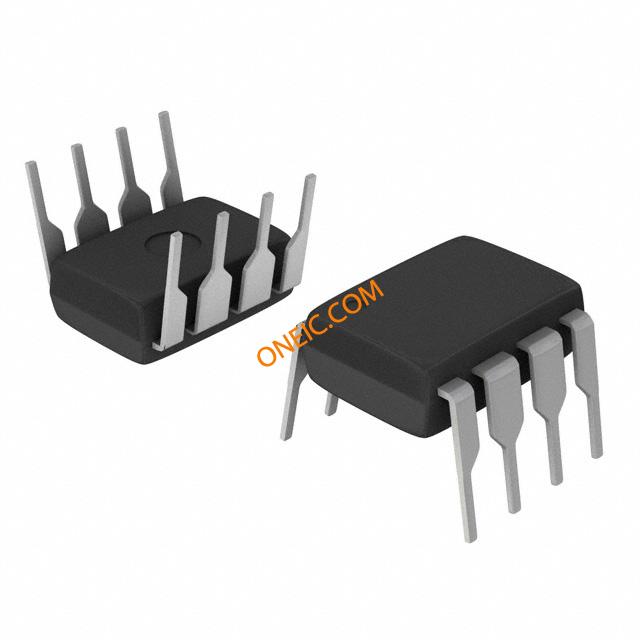

FAIRCHILD SEMICONDUCTOR FAN7527BN 芯片, 功率因子校正控制器
The is a simple and high-performance active Power Factor Correction PFC Controller for electronic ballast. The FAN7527B is optimized for electronic ballasts and low-power, high-density power supplies that require minimum board size, reduced external components and low power dissipation, because the R/C filter is included in the current-sense block, an external R/C filter is not necessary. Special circuitry prevents no-load runaway conditions. Regardless of the supply voltage, the output drive clamping circuit limits the overshoot of the power MOSFET gate drive, which improves system reliability.
电源电压DC 14.0V min
输出电压 3.80 V
输出电流 ≤500 mA
针脚数 8
输入电流 3.00 mA
耗散功率 0.8 W
工作温度Max 125 ℃
工作温度Min -25 ℃
耗散功率Max 0.8 W
电源电压 11.5V ~ 30V
电源电压Max 25 V
电源电压Min 14 V
安装方式 Through Hole
引脚数 8
封装 DIP-8
长度 9.2 mm
宽度 6.67 mm
高度 3.4 mm
封装 DIP-8
工作温度 -25℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
FAN7527BN Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
MC33262PG 安森美 | 功能相似 | FAN7527BN和MC33262PG的区别 |
KA7526 飞兆/仙童 | 功能相似 | FAN7527BN和KA7526的区别 |
