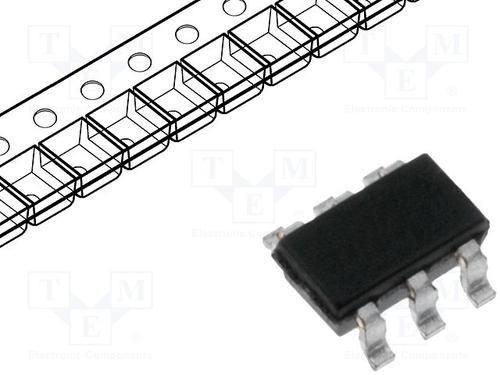

FAIRCHILD SEMICONDUCTOR FDC6331L 集成负载开关, 高压侧, 高电平有效, 1路输出, 8V, 2.8A, SSOT-6
The is an Integrated Load Switch for compact power management in portable electronic equipment where 2.5 to 8V input and 2.8A output current capability are needed. This load switch integrates a small N-channel power MOSFET Q1 that drives a large P-Channel power MOSFET Q2. This product is general usage and suitable for many different applications.
- .
- Control MOSFET Q1 includes Zener protection for ESD ruggedness >6kV human body model
- .
- High performance trench technology for extremely low RDS ON
ESD sensitive device, take proper precaution while handling the device.
额定电压DC 8.00 V
额定电流 2.80 A
额定功率 0.7 W
输出接口数 1
输入电压DC 8.00 V
输出电流 2.8 A
通道数 1
针脚数 6
漏源极电阻 0.055 Ω
耗散功率 0.7 W
漏源极电压Vds 8.00 V
连续漏极电流Ids 2.80 A
输出电流Max 2.8 A
输出电流Min 2.8 A
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 700 mW
电源电压 2.5.8 VDC
电源电压Max 20 V
电源电压Min 3 V
输入电压 8 V
安装方式 Surface Mount
引脚数 6
封装 TSOT-23-6
长度 3 mm
宽度 1.7 mm
高度 1 mm
封装 TSOT-23-6
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
香港进出口证 NLR
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
FDC6331L Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
