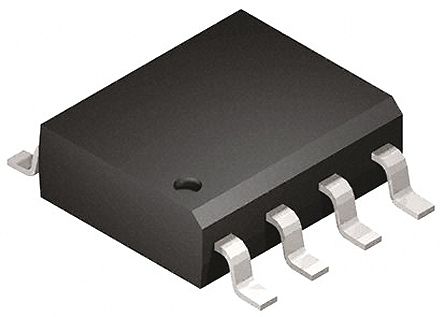

FAIRCHILD SEMICONDUCTOR FAN73901MX 驱动器, IGBT, MOSFET, 高压侧和低压侧, 10V-20V电源, 2.5A输出, 140ns延迟, SOIC-8
The is a monolithic high- and low-side Gate Drive IC for HID lamp ballast. It can drive high speed MOSFETs and IGBTs that operate up to +600V. It has a buffered output stage with all NMOS transistors designed for high pulse current driving capability and minimum cross-conduction. "s high-voltage process and common-mode noise cancelling techniques provide stable operation of the high-side driver under high dv/dt noise circumstances. An advanced level-shift circuit offers high-side gate driver operation up to VS=-9.8V typical for VBS=15V. The UVLO circuit prevents malfunction when VDD and VBS are lower than the specified threshold voltage.
电源电压DC 10.0V min
上升/下降时间 25ns, 20ns
输出接口数 2
输出电流 2.5 A
针脚数 8
耗散功率 0.625 W
上升时间 50 ns
下降时间 45 ns
下降时间Max 45 ns
上升时间Max 50 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 625 mW
电源电压 10V ~ 20V
电源电压Max 20 V
电源电压Min 10 V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 5.12 mm
宽度 4.15 mm
高度 1.5 mm
封装 SOIC-8
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
