Fairchild Semiconductor### 高级负载开关，Fairchild Semiconductor
Manually turn on and off parts of a system with this power switch by Semiconductor. This charge controller has single output. This device has a maximum power dissipation of 300 mW. It features 0.58 Ohm switch on resistance. This charge controller has an input voltage of 2.5 to 8 V. Its maximum power dissipation is 300 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This charge controller has an operating temperature range of -55 °C to 150 °C.
额定电压DC 2.50 V
额定电流 600 mA
额定功率 0.3 W
输出接口数 1
输入电压DC 8.00 V
输出电流 0.27 A
极性 NPN, PNP
耗散功率 300 mW
漏源极电压Vds 8.00 V
连续漏极电流Ids 600 mA
输出电流Max 600 mA
输出电流Min 0.27 A
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 300 mW
电源电压Max 8 V
输入电压 2.5V ~ 8V
安装方式 Surface Mount
引脚数 6

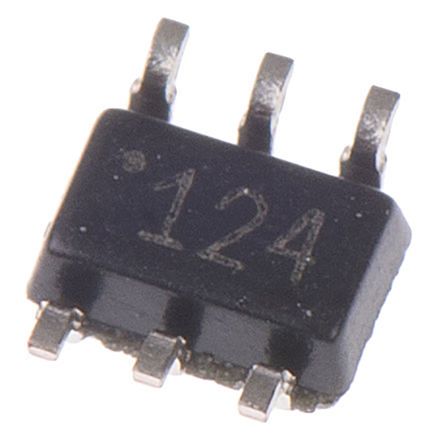

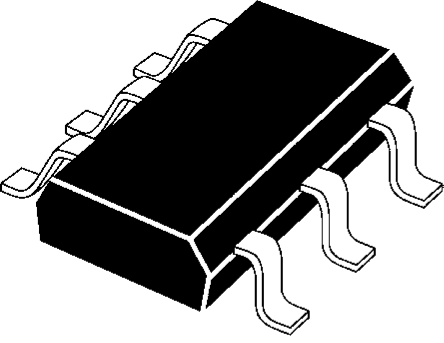

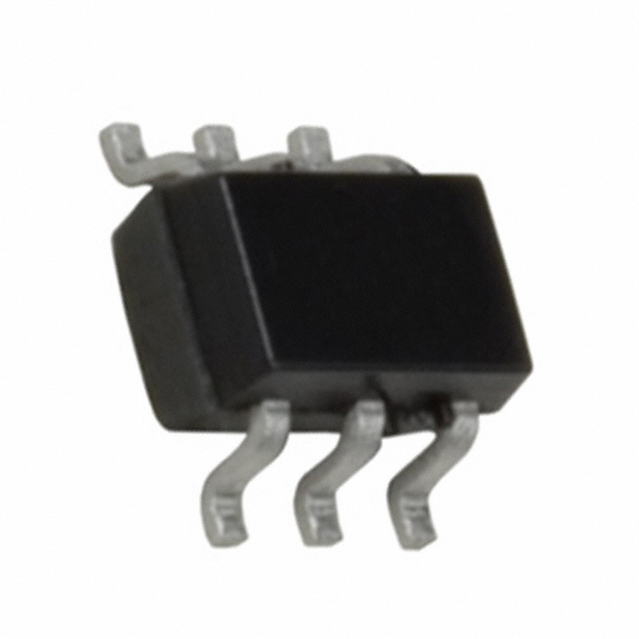

封装 SC-70-6
长度 2 mm
宽度 1.25 mm
高度 1 mm
封装 SC-70-6
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
FDG6323L Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
