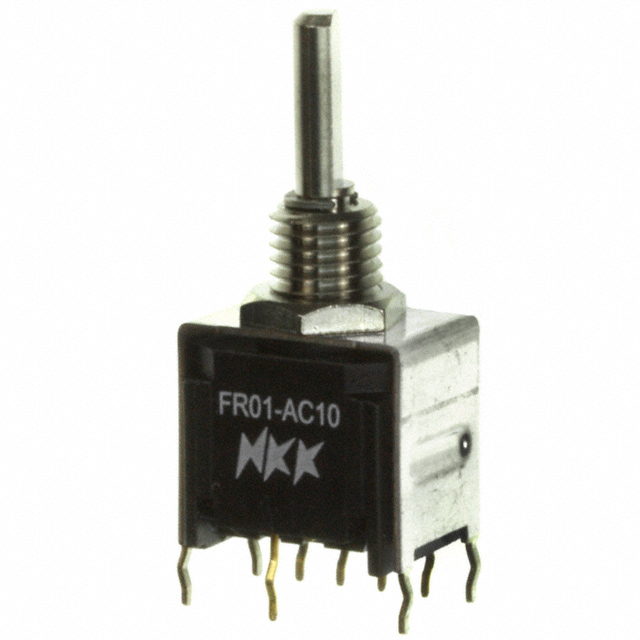

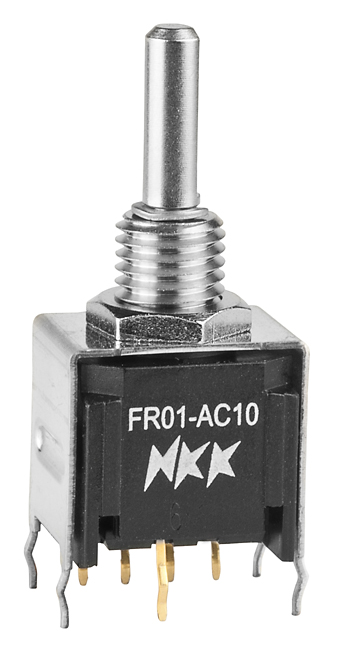

NKK SWITCHES FR01AC10PB 旋转开关, 1P, 10路, 0.1A, 5V
DIP BCD 补码 10 位置 面板安装 带轴的旋转 触动器 100mA 5VDC
得捷:
SW ROTARY DIP BCD COMP 100MA 5V
贸泽:
编码式波段开关 10mm DECIMAL YELLOW ACTUATOR
e络盟:
旋转开关, 1P, 10路, 0.1A, 5V
艾睿:
Use NKK Switches&s; FR01AC10PB dual in-line package switch to easily control different electric paths on a printed circuit board. It has a SP10T configuration. This device has a maximum current rating of 0.1 A @ 5VDC. This DIP switch has a minimum operating temperature of -25 °C and a maximum of 85 °C. The FR01AC10PB DIP switch has a PC pin termination style. This product is 11 mm long, 28.05 mm tall and 13.1 mm deep. The maximum DC voltage rating is 5 VDC.
Allied Electronics:
Switch; Dip Rotary; Mtl Shaft for Knob; Yllw Act; Decimal Pos; 100mA; 5VDC; Str PC; Brkt
Verical:
Switch DIP N.O./N.C. SP10T 10 Shaft 0.1A 5VDC PC Pins 1000Cycles Thru-Hole Tube
Newark:
# NKK SWITCHES FR01AC10PB Rotary Switch, FR01 Series, Non Illuminated, 100 mA
Powell:
DIP ROTARY
额定电压DC 5 V
额定电流 100 mA
针脚数 10
额定电流Max 0.1A @5VDC
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压 5 VDC
额定电压DC Max 5 V
接触电阻Max 100 mΩ
安装方式 Through Hole
长度 13.11 mm
高度 28.05 mm
触点材质 Copper Alloy
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
