FPF2000 系列 5.5 V 50 mA IntelliMAX™ 高级负载管理产品-SC-70
Having this load switch from Semiconductor will protect your system, even if there are any abnormal spikes of current or a short circuit. This current limited load switch"s single output can produce a current up to 0.1 A. This will operate at a minimum voltage of 1.8 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This current limited load switch has an operating temperature range of -40 °C to 85 °C.
电源电压DC 5.00 V
输出接口数 1
输入电压DC 5.50 V
输出电压 ≤6.00 V
输出电流 0.1 A
漏源极电阻 700 mΩ
极性 P-Channel
耗散功率 250 mW
输入电压Max 5.5 V
输入电压Min 1.8 V
输出电流Max 50 mA
输出电流Min 0.05 A
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 250 mW
电源电压Max 5.5 V
电源电压Min 1.8 V
输入电压 1.8V ~ 5.5V
安装方式 Surface Mount
引脚数 5

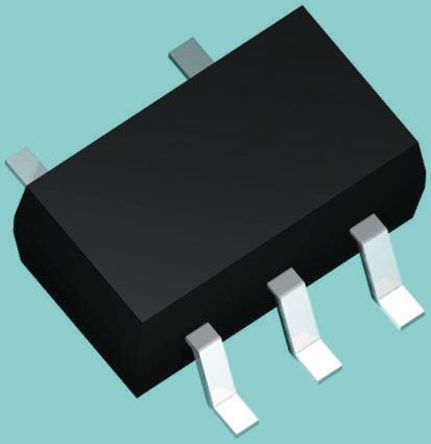

封装 SC-70-5
长度 2 mm
宽度 1.25 mm
高度 1 mm
封装 SC-70-5
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
FPF2000 Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
FPF2002 飞兆/仙童 | 完全替代 | FPF2000和FPF2002的区别 |
FPF2003 飞兆/仙童 | 完全替代 | FPF2000和FPF2003的区别 |
