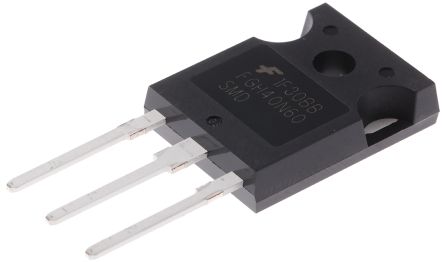

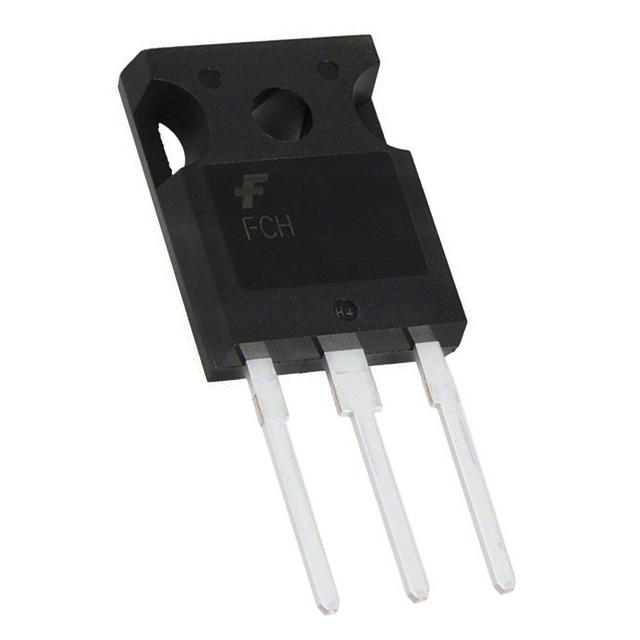

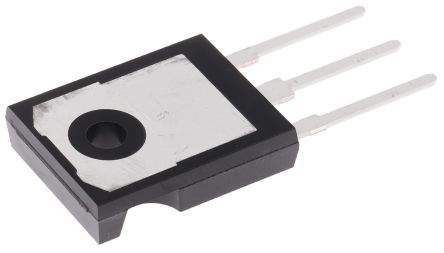

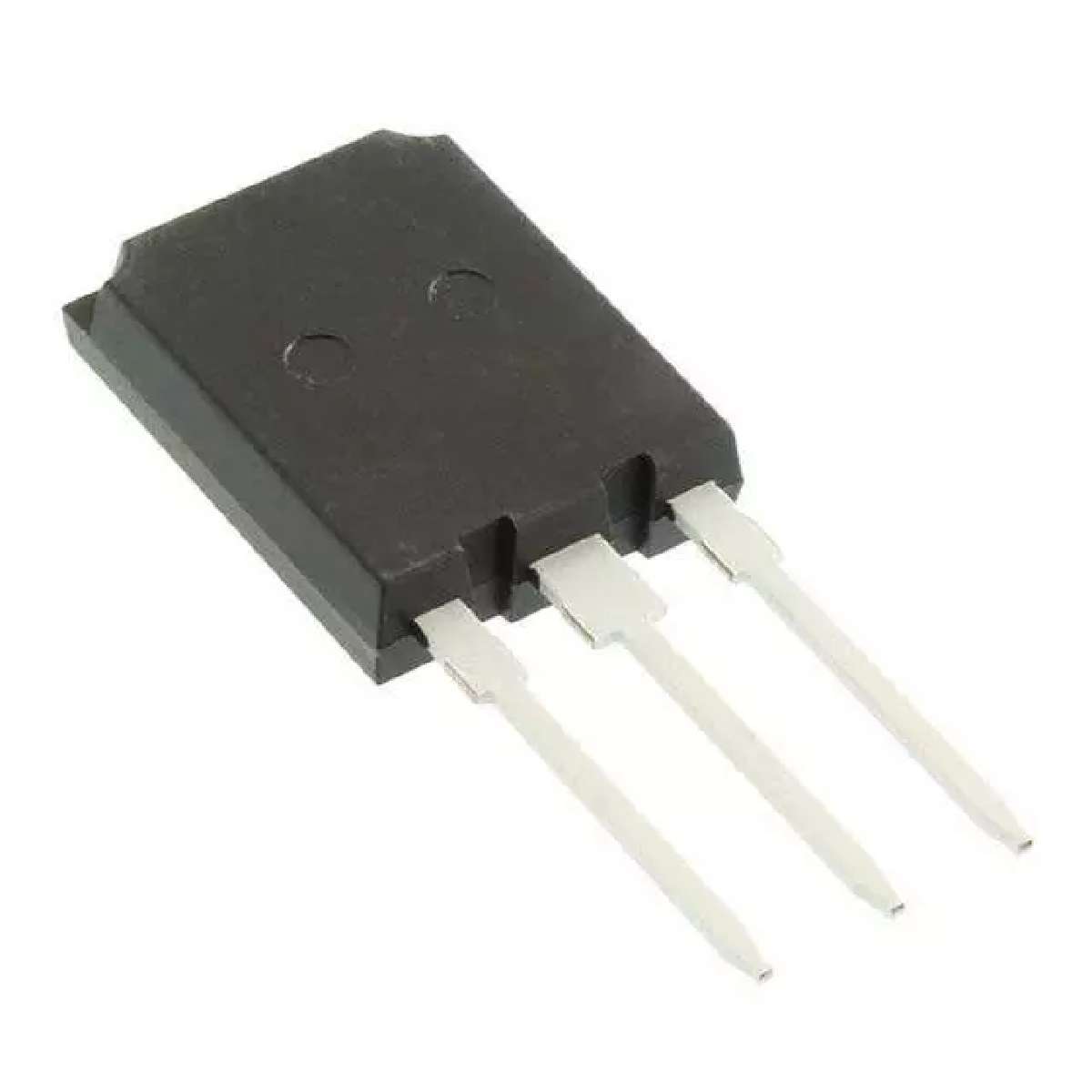

FAIRCHILD SEMICONDUCTOR FGH40N60SMD 单晶体管, IGBT, 80 A, 1.9 V, 349 W, 600 V, TO-247AB, 3 引脚
The is a 600V Field Stop IGBT with high current capability. This new IGBT is suitable for soft switching applications such as induction cookers and inverterized microwave ovens. FS IGBT provides lower VCE sat during on-state and lower switching losses during the turn-off instant. However, since it doesn"t include an intrinsic body diode in common with all other types of IGBTs, it is generally packaged together with an additional Fast Recovery Diode FRD for most switching applications. This product is general usage and suitable for many different applications.
针脚数 3
耗散功率 349 W
击穿电压集电极-发射极 600 V
反向恢复时间 36 ns
额定功率Max 349 W
工作温度Max 175 ℃
工作温度Min -55 ℃
耗散功率Max 349 W
安装方式 Through Hole
引脚数 3
封装 TO-247-3
长度 15.6 mm
宽度 4.7 mm
高度 20.6 mm
封装 TO-247-3
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
FGH40N60SMD Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
IKW50N60T 英飞凌 | 功能相似 | FGH40N60SMD和IKW50N60T的区别 |
IKW75N60T 英飞凌 | 功能相似 | FGH40N60SMD和IKW75N60T的区别 |
SGH80N60UFDTU 飞兆/仙童 | 功能相似 | FGH40N60SMD和SGH80N60UFDTU的区别 |
