FN256-36-47

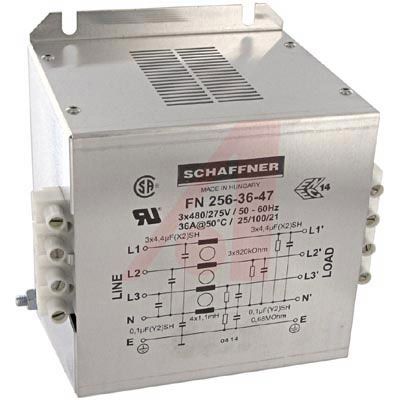

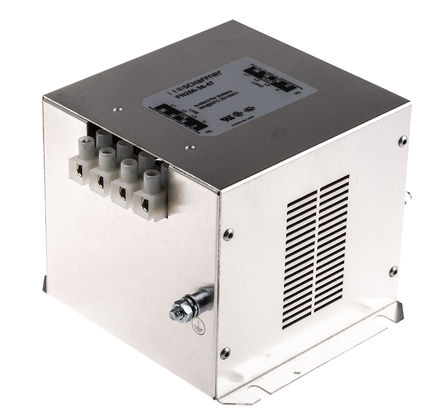

SCHAFFNER  FN256-36-47  电源线滤波器, 机壳, 3相+ 中线, 36 A, 480 VAC, 3.4 mA, 4.4 µF, 1.1 mH

FN 256 系列

的 FN256 系列的专门设计用于不对称负载应用，包括工业控制和医疗电子系统等。 FN256 系列过滤器提供对于对称和非对称干扰特别高的衰减。 特殊轻型外壳，具有非常小的体积，确保的滤波器可轻松容纳在控制面板和在密集设备机柜中。

高衰减

小泄漏电流

轻型紧凑设计

绝缘安全输入接线端子

电线输出

### 认可

UL 认证；CSA 认证；ENEC。

得捷:
LINE FILTER 36A CHASSIS MOUNT

欧时:
Schaffner FN256 系列 36A 480 V 交流, 0 至 60Hz 法兰安装 RFI 滤波器 FN256-36-47, 带螺丝接端

e络盟:
电源线滤波器, 机壳, 36 A, 480 VAC, 3相+ 中线, 螺丝安装, 1.1 mH, 4.4 µF

艾睿:
Attenuating radio frequencies between an electronic component and an external line has never been easier with this FN256-36-47 power line filter from Schaffner. This device has a maximum current rating of 36. It has an operating frequency of 0 to 60 Hz. This power line filter has a minimum operating temperature of -25 °C and a maximum of 100 °C. The FN256-36-47 power line filter has a terminal block termination style. This product is 153 mm long, 115 mm tall and 166 mm deep.

Allied Electronics:
Filter; 480 VAC; 36 A; UL Recognized, CSA Certified, IEC Approved

Newark:
# SCHAFFNER  FN256-36-47  Power Line Filter, Chassis, 4.4 µF, 480 VAC, 36 A, 3 Phase + Neutral Line, Screw, 1.1 mH

MASTER:
Power Line Filter General Purpose 0Hz to 60Hz 36A 480VAC Terminal Block Flange Mount

Electro Sonic:
Power Line Filter General Purpose 0Hz to 60Hz 36A 480VAC Terminal Block Flange Mount
