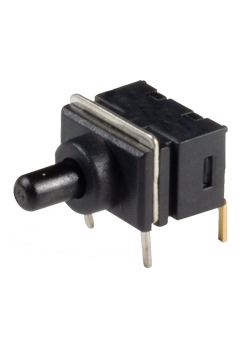

Switch Push Button OFF Mom SPST Round Plunger 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole Tray
按钮 SPST-NO 标准 通孔
立创商城:
FP11SPC1B1TP02
得捷:
SWITCH PUSH SPST-NO 0.4VA 28V
贸泽:
Pushbutton Switches UPRIGHT MOUNTING W/ BLACK CAP
艾睿:
Switch Push Button OFF Mom SPST Round Plunger 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole Tray
Allied Electronics:
Switch Push Button OFF Mom SPST Round Plunger 28VA
安富利:
Switch Push Button OFF Mom SPST Round Plunger 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole Tray
Verical:
Switch Push Button OFF Mom SPST Round Plunger 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole Tray
MASTER:
Sealed Ultra Miniature Pushbutton Switches
Electro Sonic:
Sealed Ultra Miniature Pushbutton Switches
额定电压DC 28 V
额定电压AC 28 V
排数 1
额定功率 0.4 VA
额定功率Max 0.4VA @28VAC, 28VDC
工作温度Max 80 ℃
工作温度Min -20 ℃
额定电压DC Max 28 V
额定电压AC Max 28 V
接触电阻Max 80 mΩ
安装方式 Through Hole
封装 -
高度 10.5 mm
封装 -
触点材质 Phosphor Bronze
工作温度 -20℃ ~ 80℃
产品生命周期 50000 Cycles
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
