FGA25N120ANTDTU_F109

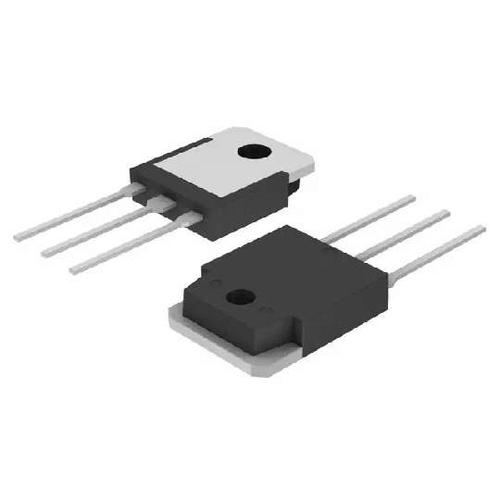

Trans IGBT Chip N-CH 1.2kV 50A 3Pin3+Tab TO-3PN Tube

Description

Using ®"s proprietary trench design and advanced NPT technology, the 1200V NPT IGBToffers superior conduction and switching performances, high avalanche ruggedness and easy parallel operation. This device is well suited for the resonant or soft switching application such as induction heating, microwave oven.

Features

• NPT Trench Technology, Positive Temperature Coefficient

• Low Saturation Voltage: VCEsat, typ= 2.0 V @ IC= 25 A and TC= 25C

• Low Switching Loss: Eoff, typ = 0.96 mJ       @ IC= 25 A and TC= 25C

• Extremely Enhanced Avalanche Capability

Applications

• Induction Heating, Microwave Oven
