TEXAS INSTRUMENTS FDC2112DNTT 电容式触摸传感器, 2.7 V, 3.6 V, WSON, 12 引脚
Never worry about important information not being documented with this specialized sensor from Texas Instruments. This part has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.
得捷:
IC CAPACITIVE SENSING
立创商城:
FDC2112DNTT
德州仪器TI:
2-Ch, 12-bit, capacitance to digital converter
贸泽:
近程传感器 Two channel, 12 bit noise-immune capacitive sensing solution for proximity sensing 12-WSON -40 to 125
e络盟:
电容式触摸传感器, I2C, 2.7 V, 3.6 V, WSON, 12 引脚, -40 °C
艾睿:
Never worry about important information not being documented with this FDC2112DNTT specialized sensor from Texas Instruments. This part has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.
安富利:
Capacitance to Digital Converter 12-Pin WSON T/R
Verical:
Capacitance to Digital Converter for Proximity and Level 12-Pin WSON EP T/R
Newark:
# TEXAS INSTRUMENTS FDC2112DNTT Capacitive Touch Sensor, 2.7 V, 3.6 V, WSON, 12
电源电压DC 2.70V min
供电电流 2.1 mA

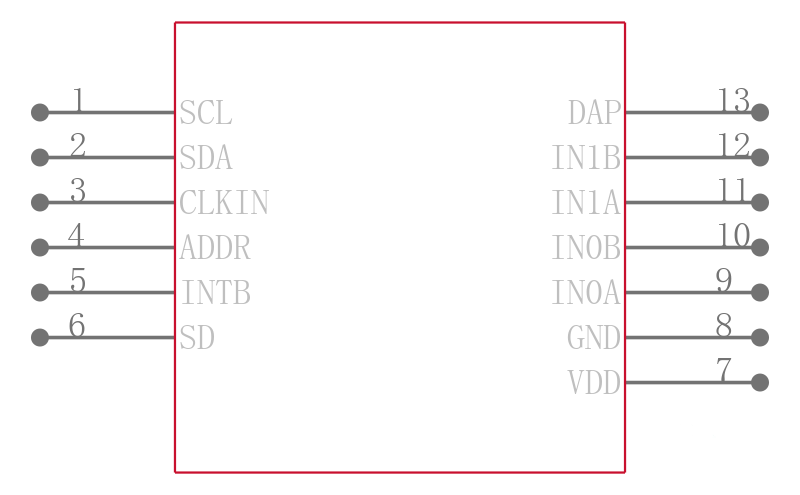

针脚数 12
输入数 2
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.7 V
引脚数 12
封装 WSON-12
长度 4 mm
宽度 4 mm
高度 0.8 mm
封装 WSON-12
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
