FAIRCHILD SEMICONDUCTOR FAN4174IS5X 运算放大器, 单路, 3.7 MHz, 1个放大器, 3 V/µs, 2.3V 至 5.25V, SOT-23, 5 引脚
The is a voltage feedback CMOS Amplifier with CMOS inputs that consume only 200µA of supply current per amplifier, while providing ±33mA of output short-circuit current. This amplifier is designed to operate 5V supplies. The common mode voltage range extends beyond the negative and positive rails. The FAN4174 is designed on a CMOS process and provide 3.7MHz of bandwidth and 3V/µs of slew rate at a supply voltage of 5V. This amplifier operates and is reliable over a wide temperature range of -40 to +125°C. The combination of extended temperature operation, low power, rail-to-rail performance, low-voltage operation and a tiny package optimize this amplifier family for use in many industrial, general-purpose and battery-powered applications.
ESD sensitive device, take proper precaution while handling the device.
供电电流 200 µA
电路数 1
针脚数 5
共模抑制比 58 dB
带宽 3.7 MHz
转换速率 3.00 V/μs
增益频宽积 3.7 MHz
输入补偿电压 8 mV
输入偏置电流 5 pA
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 3.7 MHz
增益带宽 3.7 MHz
共模抑制比Min 58 dB
电源电压 2.3V ~ 5.25V
电源电压Max 5.5 V
安装方式 Surface Mount
引脚数 5

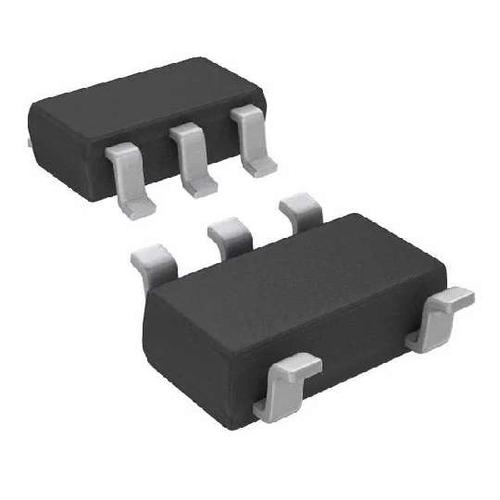

封装 SOT-23-5
长度 3 mm
宽度 1.7 mm
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
FAN4174IS5X Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
MCP6231T-E/OT 微芯 | 功能相似 | FAN4174IS5X和MCP6231T-E/OT的区别 |
TSV911ILT 意法半导体 | 功能相似 | FAN4174IS5X和TSV911ILT的区别 |
TSV321RILT 意法半导体 | 功能相似 | FAN4174IS5X和TSV321RILT的区别 |
