FAN4931IP5X

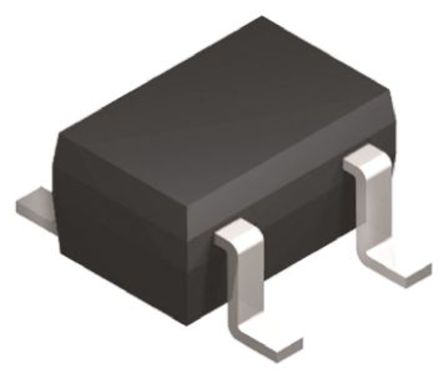

FAIRCHILD SEMICONDUCTOR  FAN4931IP5X  运算放大器, 单路, 3.7 MHz, 1个放大器, 3 V/µs, 2.3V 至 5.25V, SC-70, 5 引脚

The is a single Voltage Feedback Operational Amplifier with rail-to-rail input and outputs, CMOS inputs that consumes only 200µA of supply current, while providing ±33mA of output short-circuit current. This amplifier is designed to operate from 2.5 to 5V supplies. The common-mode voltage range extends beyond the negative and positive rails. The FAN4931 is designed on a CMOS process and provides 3.7MHz of bandwidth and 3V/µs of slew rate at a supply voltage of 5V. This amplifier operates and is reliable over a wide temperature range. The combination of extended temperature operation, low power, rail-to-rail performance and low voltage operation optimizes this amplifier for use in many industrial, general purpose and battery powered applications.

.

Input voltage range exceeds the rails

.

Output swing to within 10mV of either rail

.

200µA/amplifier Supply current

.

25nV/√Hz Input voltage noise
