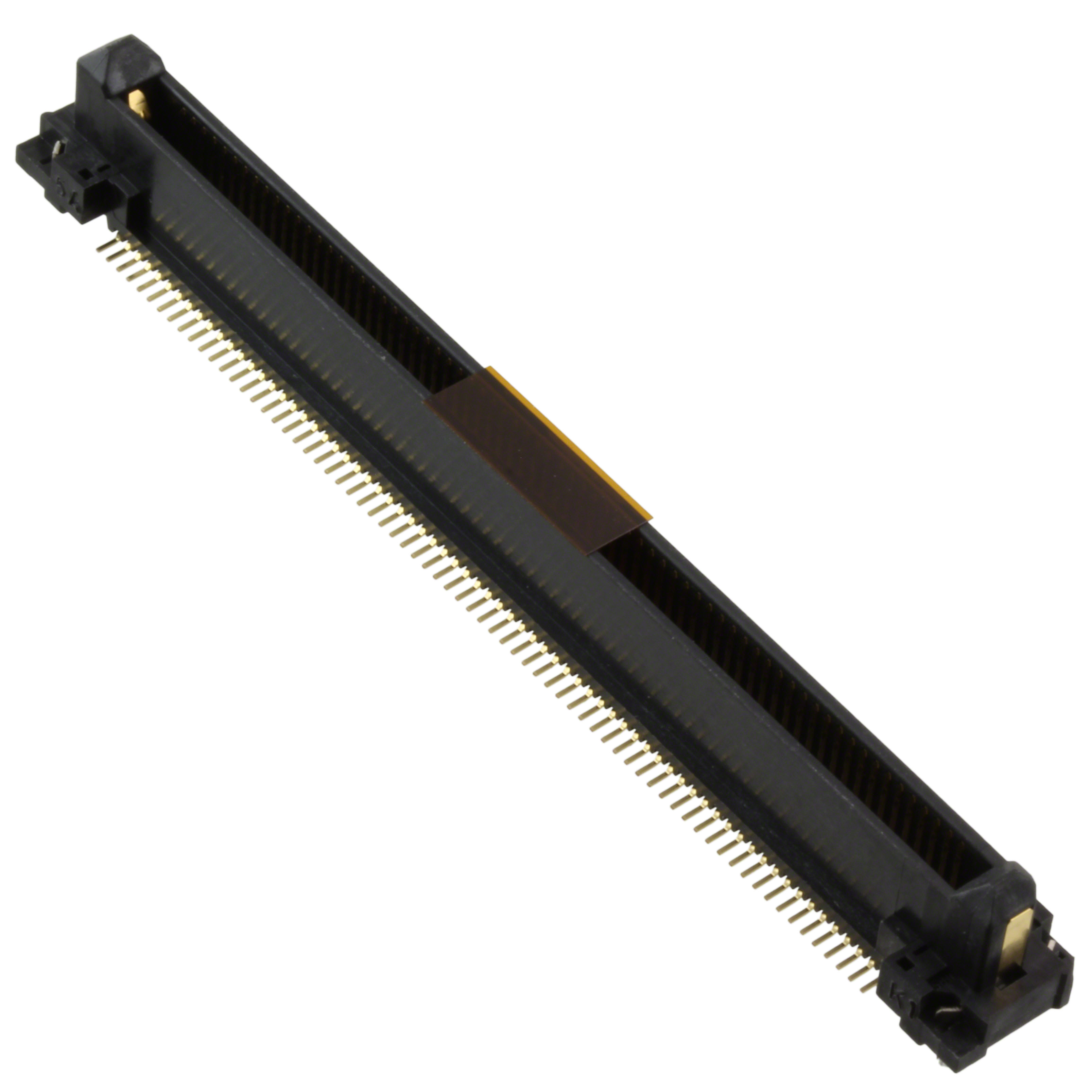

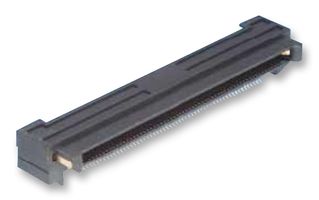

FX18-140P-0.8SV

HIROSEHRS  FX18-140P-0.8SV  板至板连接, FunctionMAX FX18系列, 140 触点, 针座, 0.8 mm, 表面安装　, 2 排

The FX18 series from Hirose are surface mount straight board to board headers with 0.8mm pitch spacing for coplanar /vertical/ stacking connection. It has multi-functional MF contact such as ground contact to enhance grounding, power supply contacts up to 12A to reduce required pin counts and 3 step sequential contacts for grounding and detection. These connectors have large mating guide for easy insertion and mates with signal contact of 2mm.

.

Insertion loss to cross talk ratio ICR meets IEEE 802.3ap specifications for 10+Gbps

.

Pin through hole mounting multifunction contacts increase strength against wrenching

.

140 contacts

.

Operating temperature range from -55°C to 80°C

.

Phosphor bronze contacts with gold plating

.

Rated voltage of 100VAC and rated current of 0.5A signal and 3A multi functional contact

.

Flammability rating meets UL94 V-0, black colour polyamide PA insulator

.

Maximum contact resistance of 90mohm

.

Mating cycles is 500
