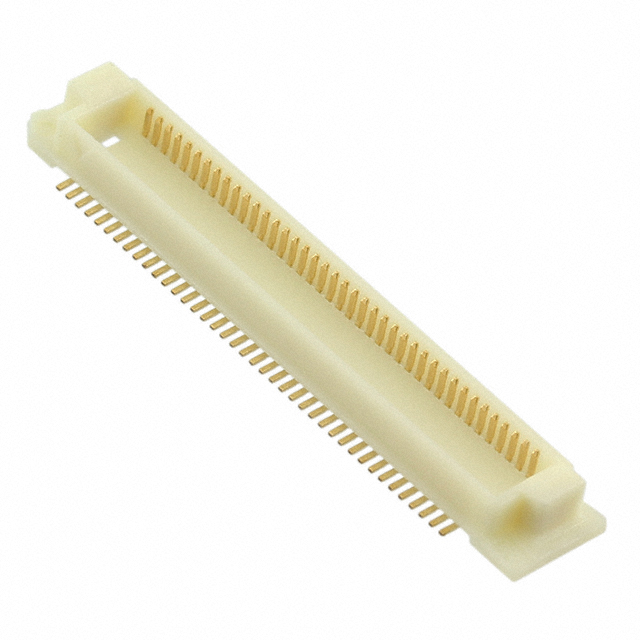

FX8-80P-SV71

HIROSEHRS  FX8-80P-SV71  堆叠板连接器, FunctionMax FX8系列, 80 触点, 针座, 0.6 mm, 表面安装　, 2 排

The FX8 series from Hirose are surface mount, vertical board to board headers with 0.6mm pitch spacing. These connectors have built-in guide ribs and chamfer which allows for ±0.6mm of misalignment and ensures easy mating.

.

Stacking height of mating connector is 3mm

.

SMT coplanarity

.

80 contacts

.

Rated voltage of 100VAC and rated current of 0.4A

.

Operating temperature range from -55°C to 85°C

.

Phosphor bronze contacts with gold plating

.

Flammability rating meets UL94 V-0, light brown colour polyphenylene sulphide PPS insulator

.

Misinsertion prevention

.

Maximum contact resistance of 45mohm

.

Mating cycles is 50
