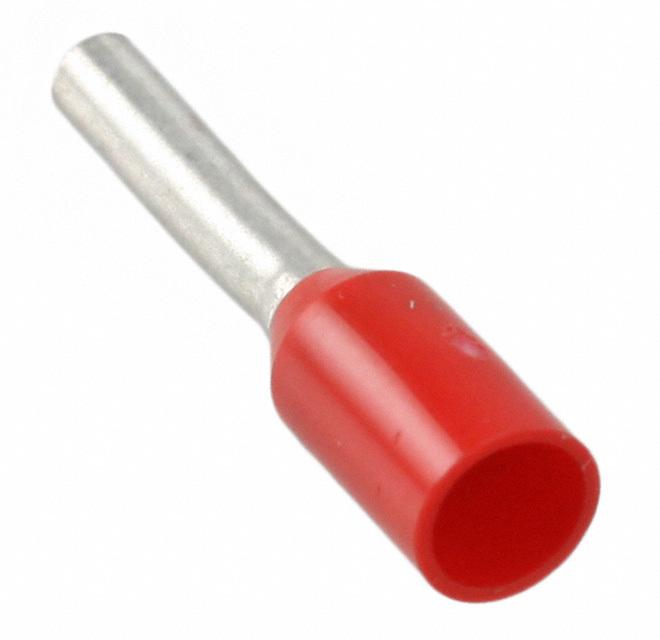

FSD77-8-D

PANDUIT  FSD77-8-D  金属套环, 无焊端头

Insulated Ferrules — Single Wire

**Features**:

* Polypropylene Insulation Housing Conforms to DIN Color Requirements

* Funnel Entry for Faster Insertion and Lower Installed Cost

* Designed with a Seamless Barrel to Contain Loose Wire Strands for Superior Terminations

* Eases Insertion of Wire into Terminal Block

* Suitable for Limited Space and Panel Applications

* * *

70283234

得捷:
CONN FERRULE DIN 18AWG RED

贸泽:
端子 18AWG INSUL RED

e络盟:
端子, 环箍, 18AWG, 红色

艾睿:
Make a proper connection between two terminal blocks using this ferrules terminal FSD77-8-D wire terminal from Panduit. This product is 14.5 mm long and 3.6 mm. Its wire is 18 AWG.

Allied Electronics:
INSULATED FERRULE; SINGLE WIRE; 18 AWG 1.0MM; .31IN8.0MM PIN LENGTH; RED DIN

MASTER:
The single wire DIN end sleeve insulated ferrule in red has a funnel entry for faster insertion and lower installation cost. It is intended for 1.0mm² wire ferrules and supports a maximum wire insulated diameter of 0.12" 3.0 mm. The insulated ferrule i

Online Components:
The single wire DIN end sleeve insulated ferrule in red has a funnel entry for faster insertion and lower installation ...

Electro Sonic:
The single wire DIN end sleeve insulated ferrule in red has a funnel entry for faster insertion and lower installation ...
