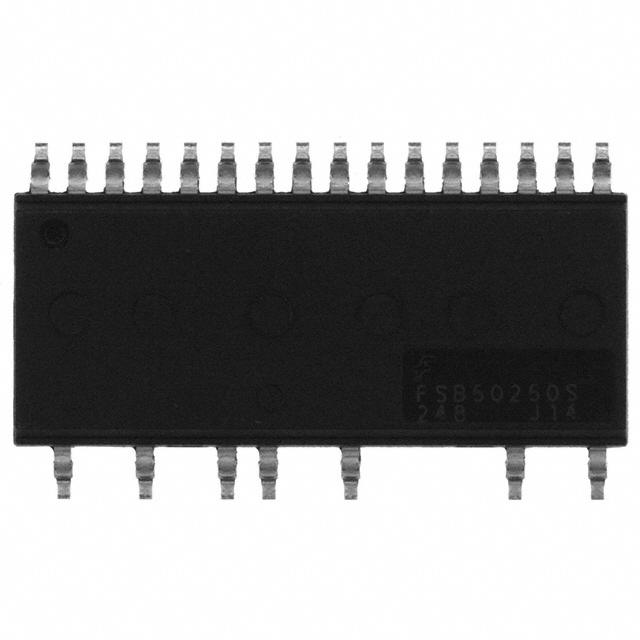

FSB50250S

智能功率模块（ SPM ） Smart Power Module SPM

The is a tiny motion SPM5 series smart power module SPM based on FRFET technology as a compact inverter solution for small power motor drive applications. It is composed of six fast recovery MOSFET FRFET and three half bridge HVICs for FRFET gate driving. The FSB50250S provides low electromagnetic interference EMI characteristics with optimized switching speed. Moreover, since it employs FRFET as a power switch, it has much better ruggedness and larger safe operation area SOA than that of an IGBT based power module or one chip solution. The package is optimized for the thermal performance and compactness for the use in the built in motor application and any other application where the assembly space is concerned. The FSB50250S is the most solution for the compact inverter providing the energy efficiency, compactness and low electromagnetic interference.

.

500V, 1.0A, 3 phase FRFET inverter including high voltage integrated circuit HVIC

.

Three separate negative DC link terminals for inverter current sensing applications

.

HVIC for gate driving and under voltage protection

.

3V/5V CMOS/TTL compatible, active high interface

.

Optimized for low electromagnetic interference

.

Isolation voltage rating of 1500Vrms for 1min

.

Surface mounted device package
