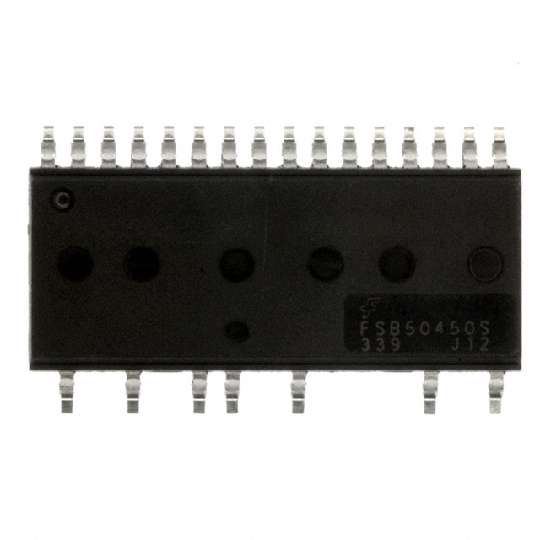

FSB50450S

FAIRCHILD SEMICONDUCTOR  FSB50450S.  智能电源模块, 3相, 500V, 3A, 电路板安装

The is an advanced Motion SPM® 5 Module provides a fully-featured, high-performance inverter output stage for AC Induction, BLDC and PMSM motors. This module integrates optimized gate drive of the built-in MOSFETs FRFET® technology to minimize EMI and losses. The built-in, high-speed HVIC requires only a single supply voltage and translates the incoming logic-level gate inputs to the high-voltage, high-current drive signals required to properly drive the module"s internal MOSFETs. Separate open-source MOSFET terminals are available for each phase to support the widest variety of control algorithms.

.

Separate open-source pins from low-side MOSFETs for three-phase current-sensing

.

Active-high interface, works with 3.3/5V logic, Schmitt-trigger input

.

Optimized for low electromagnetic interference

.

HVIC for gate driving and under-voltage protection

.

1500Vrms/minute Isolation rating

.

Moisture sensitive level MSL 3
