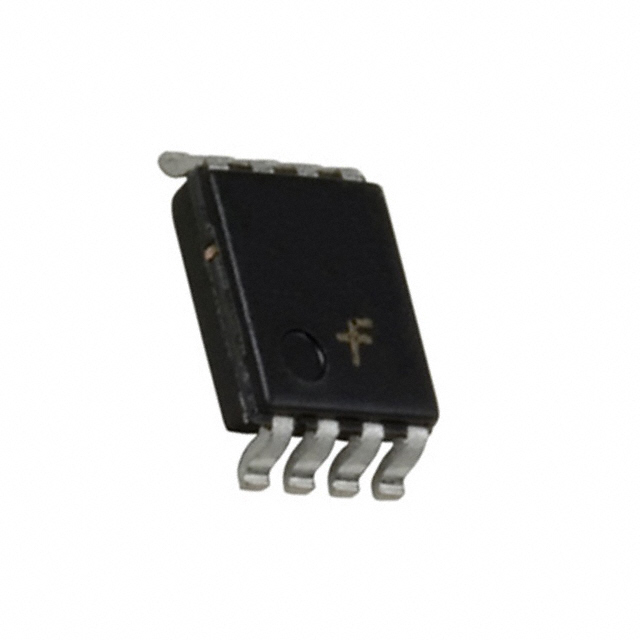

FAIRCHILD SEMICONDUCTOR FSA266K8X 模拟开关, 双通道, SPST, 2 放大器, 13.5 ohm, 1.65V 至 5.5V, VSSOP, 8 引脚
The is a single-pole single-throw SPST ultra-high-speed UHS dual Analog Switch or 2-bit Bus Switch. The device is fabricated with advanced sub-micron CMOS technology to achieve high speed enable and disable times and low On Resistance over a broad VCC range. The device is specified to operate over the 1.65 to 5.5V VCC operating range. The device is organized as a dual switch with independent CMOS compatible switch enable OE controls. When OE is HIGH, the switch is ON and Port A is connected to Port B. When OE is LOW, the switch is OPEN and a high-impedance state exists between the two ports. The enable inputs tolerate voltages up to 5.5V independent of the VCC operating range.
输出接口数 2
触点类型 SPST
电路数 2
通道数 2
针脚数 8
位数 2
耗散功率 0.25 W
带宽 300 MHz
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 300 MHz
耗散功率Max 250 mW
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 8
封装 VFSOP-8
长度 2 mm
宽度 2.3 mm
高度 0.7 mm
封装 VFSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
FSA266K8X Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
NC7WB66L8X 飞兆/仙童 | 完全替代 | FSA266K8X和NC7WB66L8X的区别 |
SN74LVC2G66DCUT 德州仪器 | 类似代替 | FSA266K8X和SN74LVC2G66DCUT的区别 |
SN74LVC2G66DCUTE4 德州仪器 | 类似代替 | FSA266K8X和SN74LVC2G66DCUTE4的区别 |
