FAIRCHILD SEMICONDUCTOR FQT13N06TF 晶体管, MOSFET, N沟道, 2.8 A, 60 V, 0.11 ohm, 10 V, 4 V
The is a N-channel enhancement-mode Power MOSFET produced using Semiconductor"s proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce ON-state resistance, provide superior switching performance and high avalanche energy strength. It is suitable for switched mode power supplies, audio amplifier and variable switching power applications.
- .
- 100% Avalanche tested
- .
- 5.8nC Typical low gate charge
- .
- 15pF Typical low Crss
额定电压DC 60.0 V
额定电流 2.80 A
针脚数 3
漏源极电阻 0.11 Ω
极性 N-Channel
耗散功率 2.1 W
阈值电压 4 V
漏源极电压Vds 60 V
漏源击穿电压 60.0 V
栅源击穿电压 ±25.0 V
连续漏极电流Ids 2.80 A
上升时间 25 ns
输入电容Ciss 310pF @25VVds
额定功率Max 2.1 W
下降时间 15 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 2.1W Tc
安装方式 Surface Mount
引脚数 3

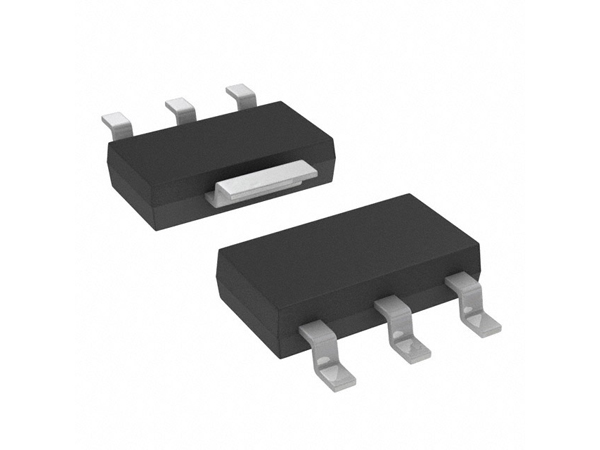

封装 TO-261-4
长度 6.5 mm
宽度 3.56 mm
高度 1.7 mm
封装 TO-261-4
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
FQT13N06TF Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
FQT13N06LTF 安森美 | 功能相似 | FQT13N06TF和FQT13N06LTF的区别 |
