FDE-9SOL2T2/1-LF

CINCH  FDE-9SOL2T2/1-LF  滤波连接器, D-SUB, DE, 插座, 9 触点, 1000 pF, 金属主体

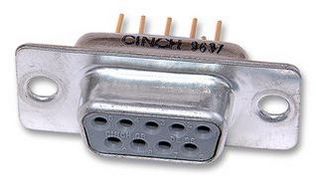

The is a 9-position Filtered D-sub Connector Socket with 3.05mm mounting hole. It has copper alloy contact with high impact epoxy and GF polyester insulator, bright tin shell finish and straight flow solder termination 0.6mm, 5.3mm long.

.

1000pF Capacitance

.

Din class 2 Performance level

.

5A Current rating

.

5mR Contact resistance maximum

.

>=5x10⁹MR Insulation resistance minimum

.

-25 to 85°C Operating temperature
