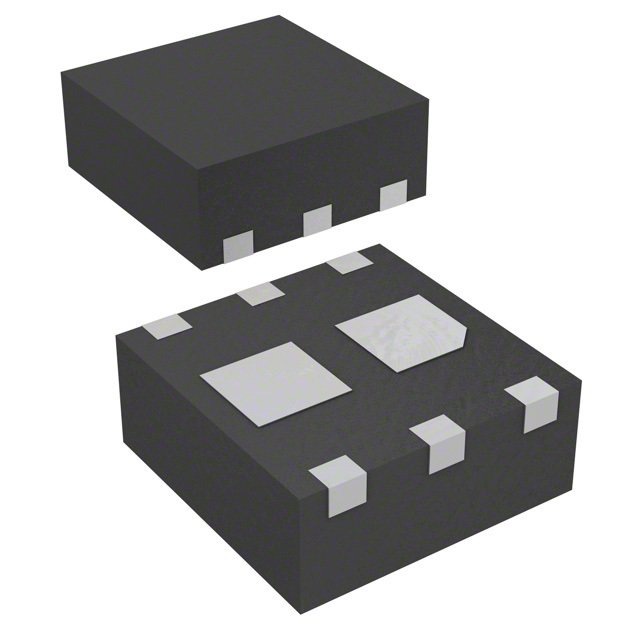

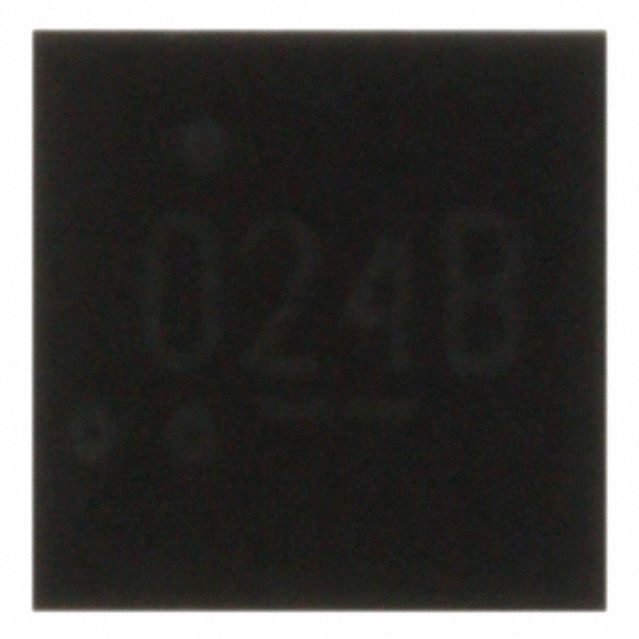

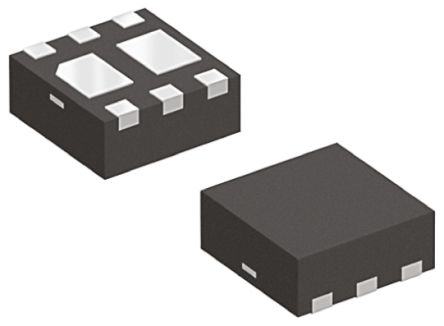

FDMA1024NZ

FAIRCHILD SEMICONDUCTOR  FDMA1024NZ  双路场效应管, MOSFET, 双N沟道, 5 A, 20 V, 0.037 ohm, 4.5 V, 700 mV

The is a dual P-channel PowerTrench® MOSFET designed specifically as a single package solution for the battery charge switch in cellular handset and other ultra-portable applications. It has two independent P-channel MOSFETs with low ON-state resistance for minimum conduction losses. When connected in the typical common source configuration, bidirectional current flow is possible. The MicroFET thin package offers exceptional thermal performance for its physical size and is well suited to linear mode applications. It is suitable for use with baseband switch, load switch and DC-to-DC conversion applications.

.

Low profile

.

Halogen-free

.

±8V Gate to source voltage

.

5A Continuous drain current

.

6A Pulsed drain current
