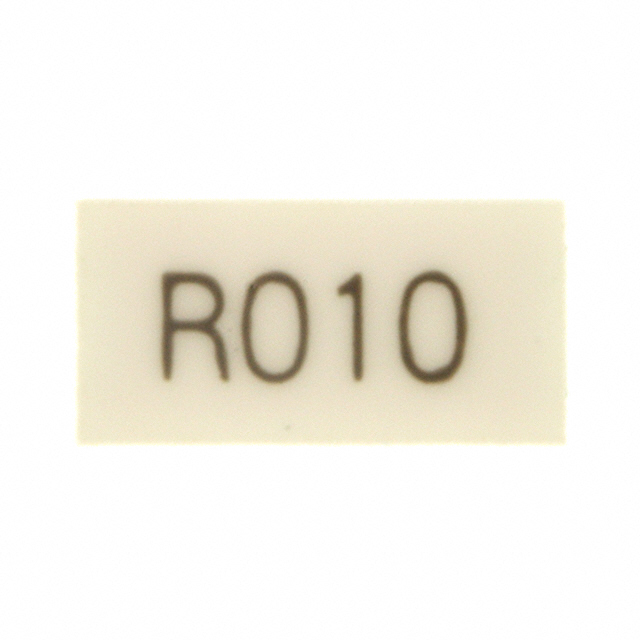

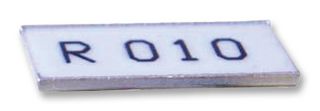

OHMITE FCSL64R010FER 检流电阻, 0.01Ω, 2W, 1%
FCSL incorporates proven metal foil technology to produce the ultimate in a current sense resistor.
**Features**
* Foil Construction Ensures a Very Stable TCR
* Designed for Automatic Insertion
* Industry Standard Sizes
* High Heat Resistance Use
* Low Heat Electromotive Use
* Color: White Top and Green Bottom
**Specifications**
* Max Temperature for Rated Power: 70°C
* Operating Temperature: –55°C to +155°C
得捷:
RES 0.01 OHM 2W 2512 WIDE
立创商城:
10mΩ ±1% 2W
e络盟:
检流电阻, 0.01Ω, 2W, 1%
Allied Electronics:
Resistor; Metal Foil; Res 0.01 Ohms; Pwr-Rtg 2 W; Tol 1%; SMT; Current Sense
Verical:
Res Metal Foil 1225 0.01 Ohm 1% 2W ±50ppm/°C Epoxy Resin Wide Terminal SMD T/R
Newark:
# OHMITE FCSL64R010FER SMD Current Sense Resistor, 0.01 ohm, 2 W, 2512 [6432 Metric], ± 1%, FCSL Series
MASTER:
Res Metal Foil 1225 0.01 Ohm 1% 2W ±50ppm/°C Wide Terminal SMD T/R
Electro Sonic:
Res Metal Foil 1225 0.01 Ohm 1% 2W ±50ppm/°C Wide Terminal SMD T/R
