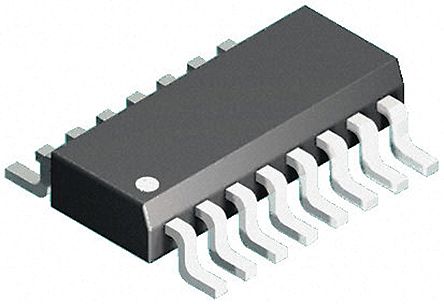

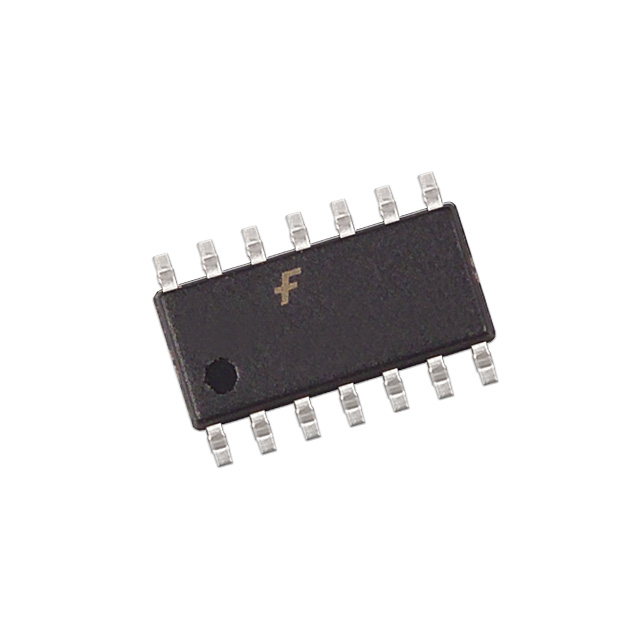

FAIRCHILD SEMICONDUCTOR FAN7384MX 驱动器, IGBT, MOSFET, 半桥, 13V-20V电源, 500mA输出, 170ns延迟, SOIC-14
The is an input logic compatible Half-bridge Gate-Drive with fixed dead-time and OCP/shutdown protection. It is a monolithic half-bridge gate-drive IC designed for high voltage, high speed driving MOSFETs and IGBTs operating up to 600V. Its high-voltage process and common-mode noise cancelling technique provide stable operation of high-side drivers under high-dv/dt noise circumstances. An advanced level-shift circuit allows high-side gate driver operation up to VS=-9.8V typical for VBS=15V. The UVLO circuits prevent malfunction when VDD and VBS are lower than the specified threshold voltage. Output driver typically source/sink 250/500mA, respectively, which is suitable for half-bridge and full-bridge applications in motor drive systems.
电源电压DC 13.0V min
上升/下降时间 50ns, 30ns
输出接口数 2
供电电流 1.3 mA
针脚数 14
耗散功率 1 W
上升时间 100 ns
下降时间 80 ns
下降时间Max 80 ns
上升时间Max 100 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 1000 mW
电源电压 13V ~ 20V
电源电压Max 20 V
电源电压Min 13 V
安装方式 Surface Mount
引脚数 14
封装 SOIC-14
长度 10.2 mm
宽度 5.3 mm
高度 1.8 mm
封装 SOIC-14
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
FAN7384MX Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
FAN7384M 飞兆/仙童 | 功能相似 | FAN7384MX和FAN7384M的区别 |
