FAIRCHILD SEMICONDUCTOR FAN7383MX 驱动器, IGBT, MOSFET, 半桥, 15V-20V电源, 650mA输出, 170ns延迟, SOIC-14
Description
The FAN7383 is a half-bridge gate-drive IC with shutdown and programmable dead-time control functions for driving MOSFETs and IGBTs that operate up to +600V.
’s high voltage process and common-mode noise canceling technique give stable operation of high side drivers under high-dv/dt noise circumstances.
Features
Floating Channel Designed for Bootstrap Operation to +600V.
Typically 350mA/650mA Sourcing/Sinking Current Driving Capability for Both Channels
Extended Allowable Negative VSSwing to -9.8V for Signal Propagation at VDD=VBS=15V
High-Side Output in Phase of IN Signal
Built-in UVLO Functions for Both Channels
Built-in Common-Mode dv/dt Noise Canceling Circuit
Typically Internal 330ns Minimum Dead-Time
Programmable Turn-On Delay Time ControlDead-Time
电源电压DC 15.0V min
上升/下降时间 50ns, 30ns
输出接口数 4
针脚数 14
耗散功率 1 W
上升时间 100 ns
下降时间 80 ns
下降时间Max 80 ns
上升时间Max 100 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 1000 mW
电源电压 15V ~ 20V
电源电压Max 20 V
电源电压Min 15 V
安装方式 Surface Mount
引脚数 14

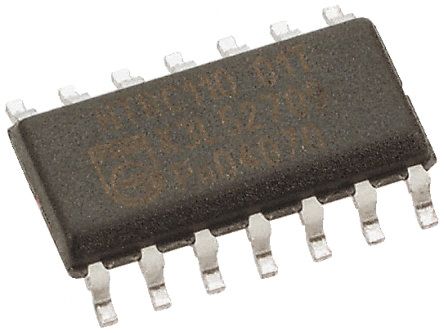

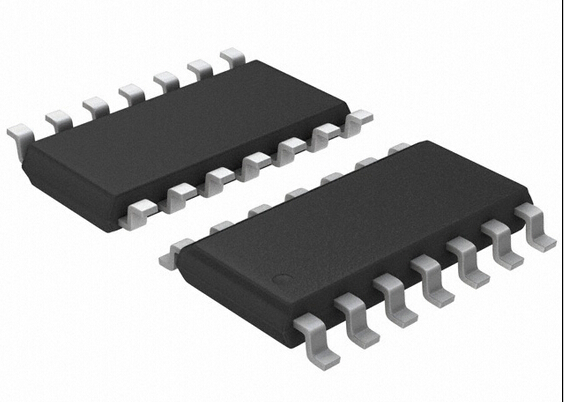

封装 SOIC-14
长度 8.7 mm
宽度 3.95 mm
高度 1.55 mm
封装 SOIC-14
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
