FAIRCHILD SEMICONDUCTOR FAN7631SJX 芯片, 控制器, PFM, 最高600KHZ, 16SOP
Description
The FAN7631 is a pulse-frequency modulation controller for high-efficiency half-bridge resonant converters that includes a high-side gate drive circuit, an accurate current-controlled oscillator, and various protection functions. The FAN7631 features include variable dead time, operating frequency up to 600kHz, protections such as LUVLO, and a selectable latch or A/R protection using the LS pin for user convenience.
Features
Variable Frequency Control with 50% Duty Cycle for Half-Bridge Resonant Converter Topologies
High Efficiency with Zero-Voltage-Switching ZVS
Up to 600kHz Operating Frequency
Built-in High-Side Gate Driver
High Gate-Driving Current: +500mA/-1000mA
Programmable Dead Time with a Resistor
Pulse Skipping and Burst Operation for Frequency Limit Programmable at Light-Load Condition
Simple Remote On/Off Control with Latch or Auto-Restart A/R Using FI or LS Pin
Protection Functions: Over-Voltage Protection OVP, Overload Protection OLP, Over-Current
Protection OCP, Abnormal Over-Current Protection AOCP, Internal Thermal Shutdown TSD, and High Precise Line Under-Voltage Lockout LUVLO
Level-Change OCP Function During Startup
Applications
PDP and LCD TVs
Desktop PCs and Servers
Video Game Consoles
Adapters
Telecom Power Supplies
频率 300 kHz
额定功率 192 W
输入电压DC 17.0 V
输出电流 1 A
供电电流 10 mA
针脚数 16
耗散功率 1240 mW
上升时间 40 ns
开关频率 10kHz ~ 600kHz
下降时间 20 ns
工作温度Max 130 ℃
工作温度Min -40 ℃
耗散功率Max 1240 mW
电源电压 11.1V ~ 21V
输入电压 17 V
安装方式 Surface Mount
引脚数 16

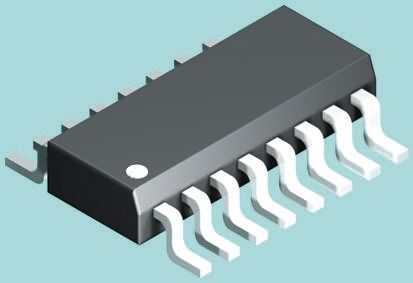

封装 SOP-16
长度 10.2 mm
宽度 5.3 mm
高度 2.1 mm
封装 SOP-16
工作温度 -40℃ ~ 130℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 谐振转换器控制器
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
FAN7631SJX Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
FAN7631SJ 飞兆/仙童 | 完全替代 | FAN7631SJX和FAN7631SJ的区别 |
FAN7621SJ 飞兆/仙童 | 功能相似 | FAN7631SJX和FAN7621SJ的区别 |
