FAN2558SX

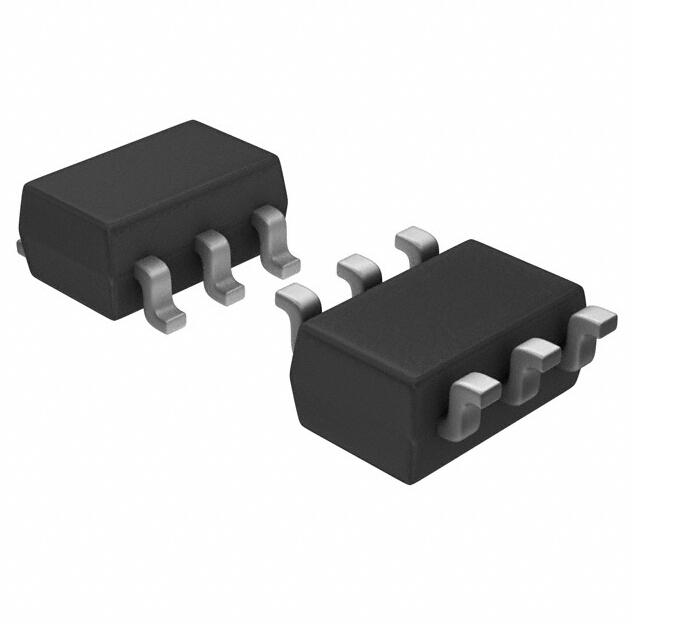

FAIRCHILD SEMICONDUCTOR  FAN2558SX  电压稳压器, LDO, 可调, 5.5V输入, 180mA输出, SOT-23-6

The is a low voltage CMOS LDO features adjustable output voltage, 180mA load current, delayed power good output and 1% output accuracy with excellent line and load regulation. An external bypass capacitor provides ultra-low noise operation. The FAN2558 low voltage LDO incorporates both thermal shutdown and short circuit protection. Output is stable with a 1µF, low ESR capacitor.

.

Power good indicator with open drain output

.

Cbypass for low noise operation

.

Fast enable for CDMA

.

High ripple rejection

.

Current limit

.

Thermal shutdown

.

Excellent line and load regulation

.

TTL-level compatible enable input

.

Active output discharge

.

Requires only 1µF output capacitor

.

Stable with 0 to 300mR ESR
