FAIRCHILD SEMICONDUCTOR FDC6306P 双路场效应管, MOSFET, 双P沟道, 1.9 A, -20 V, 0.127 ohm, -4.5 V, -900 mV
最大源漏极电压VdsDrain-Source Voltage| -20V \---|--- 最大栅源极电压Vgs±Gate-Source Voltage| -8V 最大漏极电流IdDrain Current| -1.9A 源漏极导通电阻RdsDrain-Source On-State Resistance| 250mΩ@ VGS = -2.5V, ID = -1.7A 开启电压Vgs(th)Gate-Source Threshold Voltage| -0.4~-1.5V 耗散功率PdPower Dissipation| 960mW/0.96W Description & Applications| Dual P-Channel 2.5V Specified Power Trench MOSFET General Description These P-Channel low threshold 2.5V specified MOSFETs are produced using Semiconductor"s advanced Power Trench process that has been especially tailored to minimize on-state resistance and yet maintain low gate charge for superior switching performance. Applications • Load switch • DC/DC converter • Motor driving Features • Low gate charge 3.5nC typical. • Fast switching speed. • High performance trench technology for extremely low RDSON • SuperSOTTM-6 package: small footprint 描述与应用| 双P沟道2.5V额定功率沟道MOSFET 概述 这些P沟道低阈值2.5V指定的MOSFET采用飞兆半导体先进的功率沟槽进程,已特别是针对减少通态电阻,但维持出色的开关性能低栅极电荷。 应用 •负荷开关 •DC/ DC转换器 •电机驱动 特点 •低栅极电荷(3.5nC典型值)。 •快速开关速度。 •高性能沟道技术极低的RDS(ON) •SuperSOTTM-6包装:占地面积小
额定电压DC -20.0 V
额定电流 -1.90 A
针脚数 6
漏源极电阻 0.127 Ω
极性 P-Channel
耗散功率 960 mW
输入电容 441 pF
栅电荷 3.00 nC
漏源极电压Vds 20 V
栅源击穿电压 ±8.00 V
连续漏极电流Ids -1.90 A
上升时间 9 ns
输入电容Ciss 441pF @10VVds
额定功率Max 700 mW
下降时间 3 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 0.96 W
安装方式 Surface Mount
引脚数 6

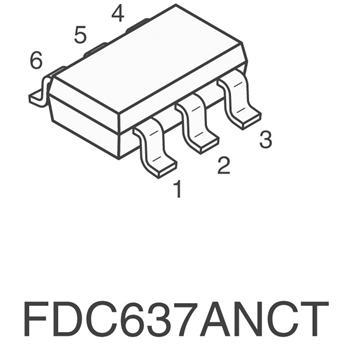

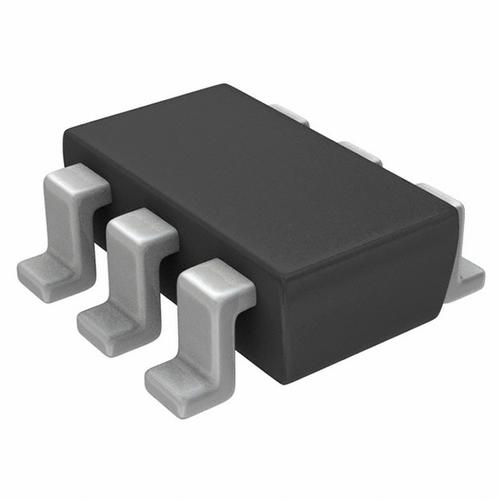

封装 TSOT-23-6
长度 3 mm
宽度 1.7 mm
高度 1 mm
封装 TSOT-23-6
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
FDC6306P Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
FDC6312P 飞兆/仙童 | 类似代替 | FDC6306P和FDC6312P的区别 |
FDC6506P 飞兆/仙童 | 类似代替 | FDC6306P和FDC6506P的区别 |
FDC6318P 飞兆/仙童 | 类似代替 | FDC6306P和FDC6318P的区别 |
