FSA1259AK8X

FSA系列 SPST 5.5 V 1 Ohm 表面贴装 低压 双模拟开关 - US-8

Description

The FSA1259/FSA1259A is a high-performance, dual, Single-Pole / Single-Throw SPST analog switch. The device features ultra-low RON of 1Ω at 4.5V VCC and operates over the wide VCC range of 1.65V to 5.50V. The FS1259A allows for reduced input thresholds on the select pins.

The device is fabricated with sub-micron CMOS technology to achieve fast switching speeds and is designed for break-before-make operation.

Features

■ Power-Off Isolation VCC=0V

■ 1Ω On Resistance RON for 4.5V VCC

■ 0.25Ω Maximum RON Flatness for 4.5V VCC

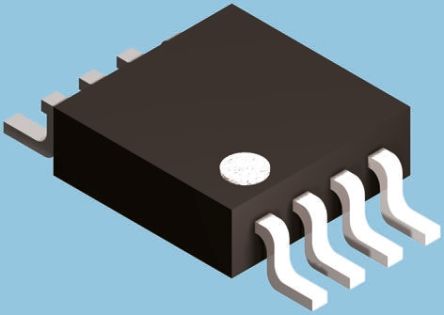

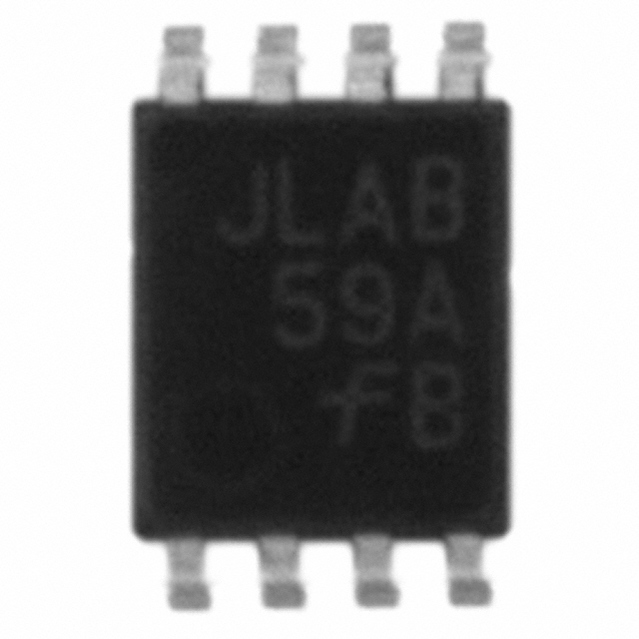

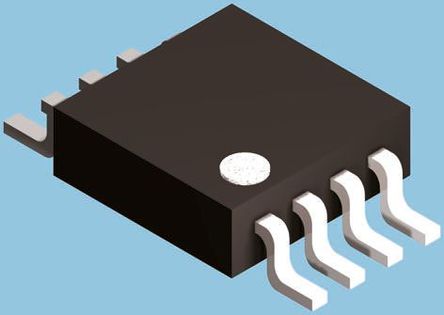

■ Space-Saving, US8 Surface Mount Package

■ Broad VCC Operating Range: 1.65V to 5.50V

■ Fast Turn-On and Turn-Off Times

■ Break-Before-Make Enable Circuitry

Applications

■ Cellular Phone

■ Portable Media Player

■ PDA
