低电压， 0.8Ω SPDT模拟开关，电源关断隔离 Low-Voltage, 0.8Ω SPDT Analog Switch with Power-Off Isolation
**Description**
The FSA839 is a high-performance Single-Pole / Double-Throw SPDT analog switch for audio applications driven by low-voltage 1.8V baseband processors or ASICs. The device features ultra-low RON of 0.8Ω maximum at 4.5V VCC and operates over the wide VCC range of 1.65V to 5.5V. The device is fabricated with sub-micron CMOS technology to achieve fast switching speeds and is designed for break-before-make operation.
**Features**
Power-Off Isolation VCC=0V
0.8Ω Maximum On Resistance RON for 4.5V VCC
0.25Ω Maximum RON Flatness for 4.5V VCC
Broad VCC Operating Range: 1.65V to 5.5V
Fast Turn-On and Turn-Off Times
Control Input Switching Thresholds Independent of VCC
Break-Before-Make Enable Circuitry

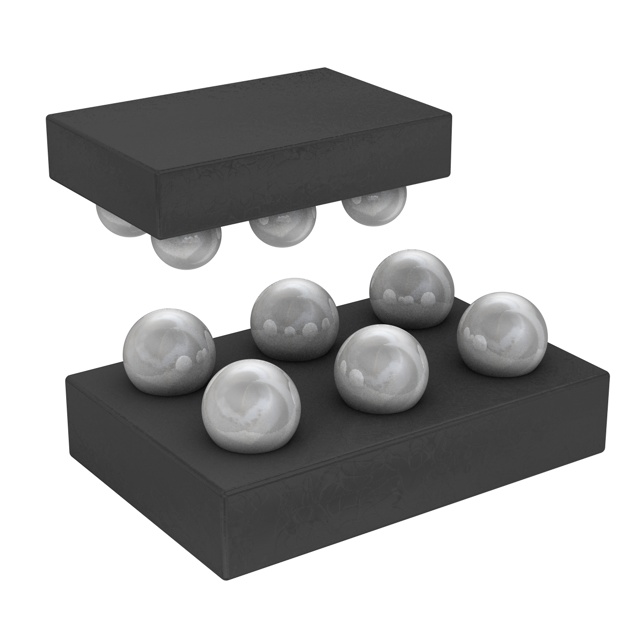

0.4mm WLCSP Packaging
ESD Performance
\- HBM per JESD22-A114, I/O to GND: 8kV
\- CDM per JESD22-C101: 500V
\- IEC61000-4-2 Contact / Air: 8kV / 15kV
**Applications**
Cellular Phone
Portable Media Player
PDA
