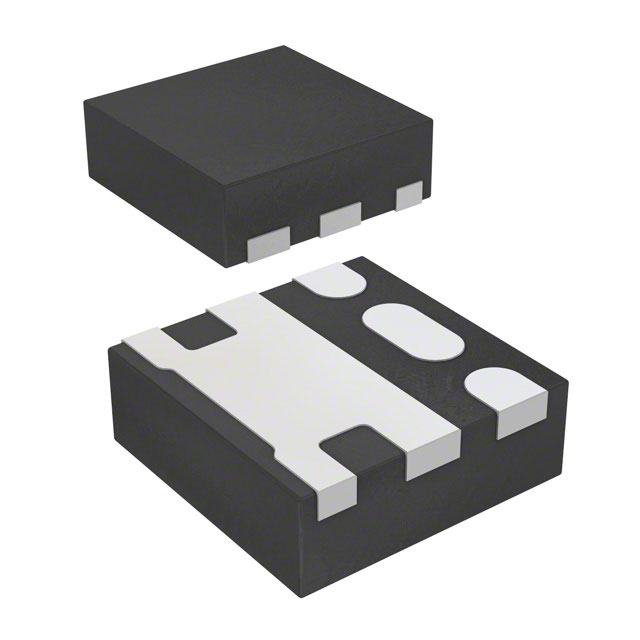

FAIRCHILD SEMICONDUCTOR FDME410NZT 晶体管, MOSFET, N沟道, 7 A, 20 V, 0.019 ohm, 4.5 V, 700 mV
The is a single N-channel MOSFET designed using Semiconductor"s advanced PowerTrench® process to optimize the RDS ON @ VGS = 1.5V on special MicroFET lead-frame. It is suitable for Li-ion battery pack, base band switch and load switch applications.
通道数 1
针脚数 6
漏源极电阻 0.019 Ω
极性 N-Channel
耗散功率 2.1 W
阈值电压 700 mV
漏源极电压Vds 20 V
漏源击穿电压 20 V
连续漏极电流Ids 7A
上升时间 3.4 ns
输入电容Ciss 1025pF @10VVds
额定功率Max 700 mW
下降时间 3.2 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 2.1W Ta
安装方式 Surface Mount
引脚数 6
封装 PowerUFDFN-6
长度 1.6 mm
宽度 1.6 mm
高度 0.55 mm
封装 PowerUFDFN-6
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
