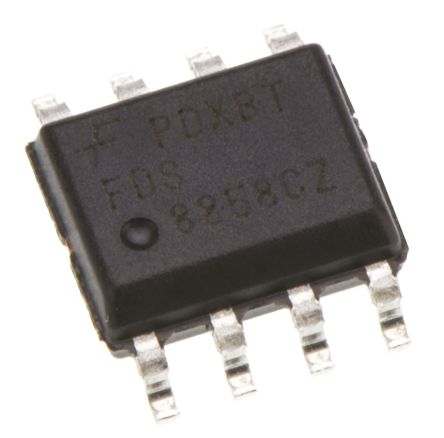

FAIRCHILD SEMICONDUCTOR FDS8858CZ 双路场效应管, MOSFET, N和P沟道, 8.6 A, 30 V, 17 mohm, 10 V, 1.6 V
The is a 30V Dual N-channel and P-channel PowerTrench® MOSFET has been specially tailored to minimize the on-state resistance and to maintain low gate charge for superior switching performance. "s the latest medium voltage power MOSFET is optimized power switches combining small gate charge QG, small reverse recovery charge Qrr and soft reverse recovery body diode, which contributes fast switching for synchronous rectification in AC/DC power supplies. It employs shielded-gate structure that provides charge balance. By utilizing this advanced technology, the FOM figure of merit QGxRDSON of these devices is 66% lower than that of previous generation. Soft body diode performance of new PowerTrench® MOSFET is able to eliminate snubber circuit or replace higher voltage rating - MOSFET need circuit because it can minimize the undesirable voltage spikes in synchronous rectification. This product is general usage and suitable for many different applications.
通道数 2
针脚数 8
漏源极电阻 17 mΩ
极性 N-Channel, P-Channel
耗散功率 2 W
阈值电压 1.6 V
漏源极电压Vds 30 V
连续漏极电流Ids 8.60 A
输入电容Ciss 1205pF @15VVds
额定功率Max 900 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 1.6 W
安装方式 Surface Mount
引脚数 8

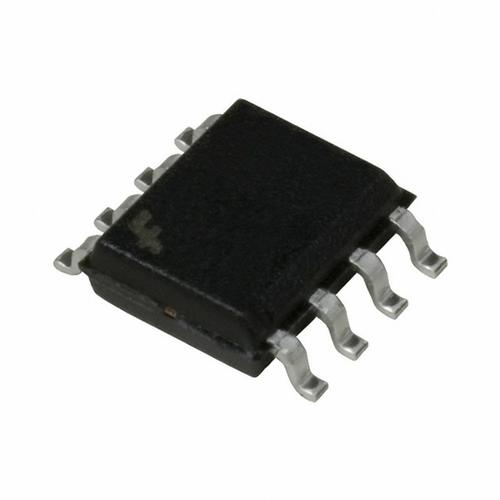

封装 SOIC-8
长度 5 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-8
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
FDS8858CZ Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
IRF7821TRPBF 英飞凌 | 功能相似 | FDS8858CZ和IRF7821TRPBF的区别 |
IRF7413TRPBF 英飞凌 | 功能相似 | FDS8858CZ和IRF7413TRPBF的区别 |
IRF7413PBF 英飞凌 | 功能相似 | FDS8858CZ和IRF7413PBF的区别 |
