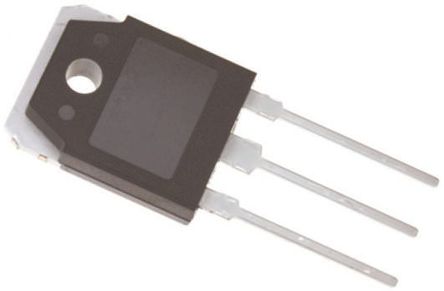

FAIRCHILD SEMICONDUCTOR FQA32N20C 晶体管, MOSFET, N沟道, 32 A, 200 V, 68 mohm, 10 V, 4 V
The is a QFET® N-channel enhancement-mode Power MOSFET produced using Semiconductor"s proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce ON-state resistance, superior switching performance and high avalanche energy strength. It is suitable for switched mode power supplies, active power factor correction PFC and electronic lamp ballasts.
- .
- 82.5nC Typical low gate charge
- .
- 185pF Typical low Crss
- .
- 100% Avalanche tested
额定电压DC 200 V
额定电流 32.0 A
针脚数 3
漏源极电阻 68 mΩ
极性 N-Channel
耗散功率 204 W
阈值电压 4 V
漏源极电压Vds 200 V
漏源击穿电压 200 V
栅源击穿电压 ±30.0 V
连续漏极电流Ids 32.0 A
输入电容Ciss 2220pF @25VVds
额定功率Max 204 W
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 204W Tc
安装方式 Through Hole
引脚数 3

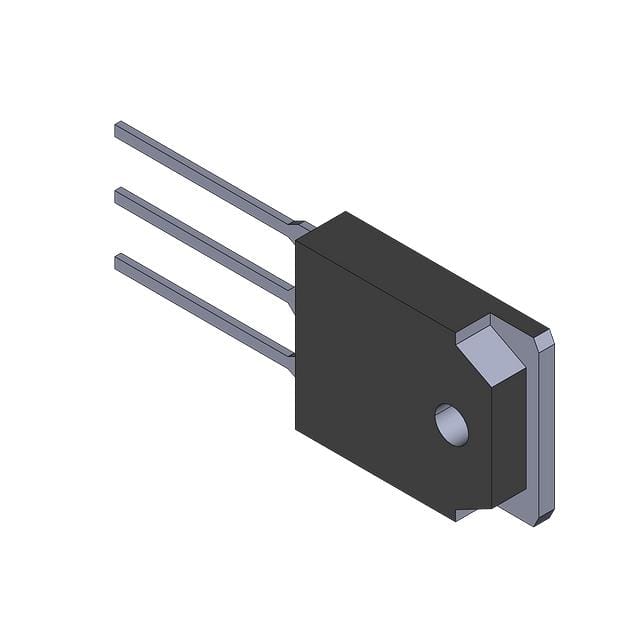

封装 TO-3-3
长度 15.8 mm
宽度 5 mm
高度 18.9 mm
封装 TO-3-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
