FAIRCHILD SEMICONDUCTOR FDS6984AS 双路场效应管, MOSFET, 双N沟道 + 肖特基, 8.5 A, 30 V, 0.017 ohm, 10 V, 1.7 V
The is a dual N-channel MOSFET designed to replace two single MOSFETs and Schottky diode in synchronous DC-to-DC power supplies that provide various peripheral voltages for notebook computers and other battery powered electronic devices. It contains two unique 30V, N-channel, logic level, PowerTrench MOSFETs designed to maximize power conversion efficiency. The high-side switch Q1 is designed with specific emphasis on reducing switching losses while the low side switch Q2 is optimized to reduce conduction losses. Q2 also includes a patented combination of a MOSFET monolithically integrated with a Schottky diode.
- .
- Optimized to minimize conduction losses
- .
- Optimized for low switching losses
针脚数 8
漏源极电阻 0.017 Ω
极性 N-Channel
耗散功率 2 W
阈值电压 1.7 V
漏源极电压Vds 30 V
漏源击穿电压 30.0 V
栅源击穿电压 ±20.0 V
连续漏极电流Ids 5.50 A, 8.50 A
上升时间 6 ns
输入电容Ciss 420pF @15VVds
额定功率Max 900 mW
下降时间 2 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 2000 mW
安装方式 Surface Mount
引脚数 8

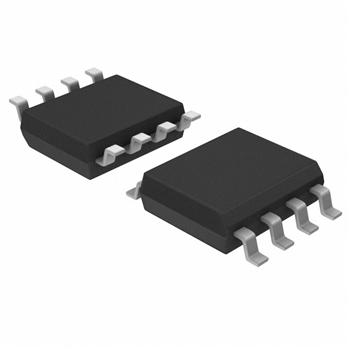

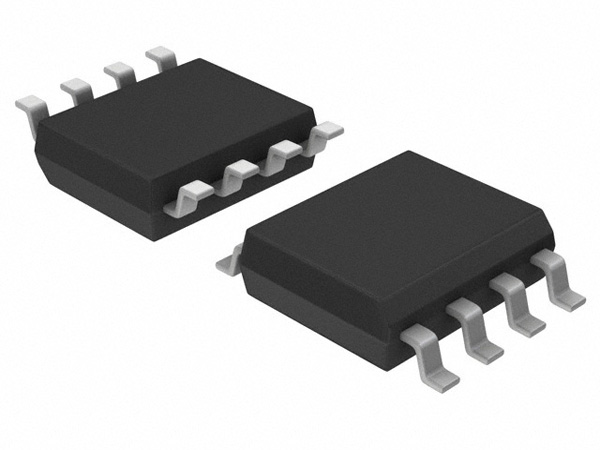

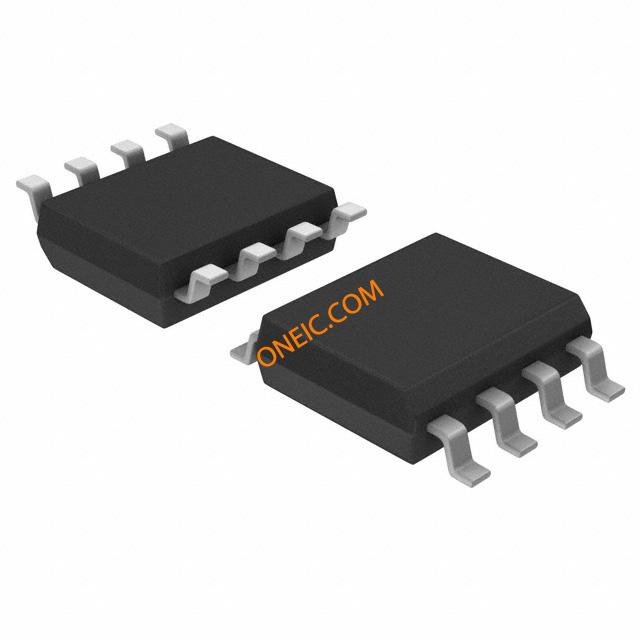

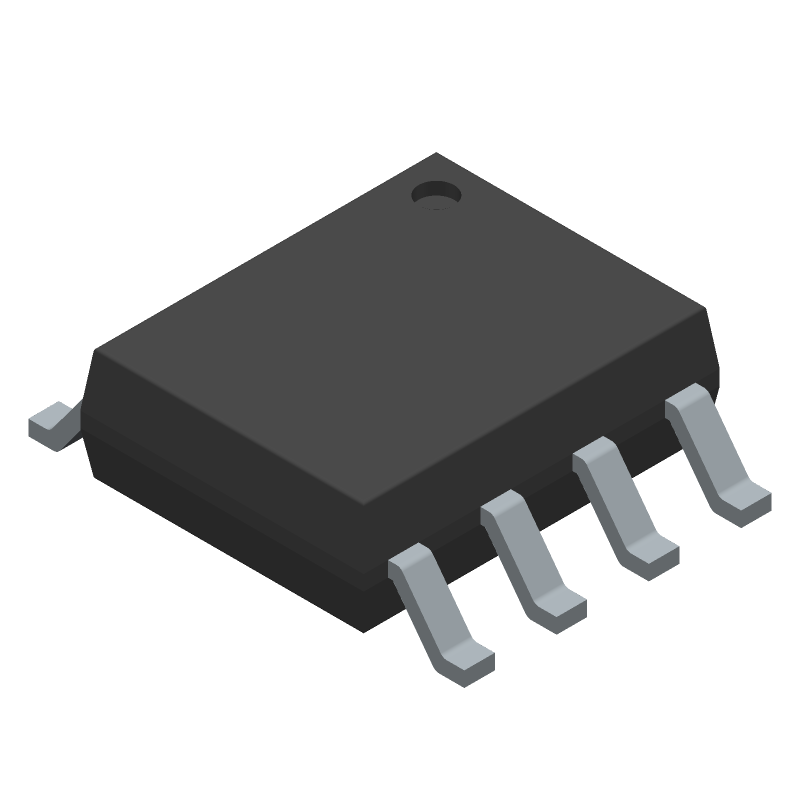

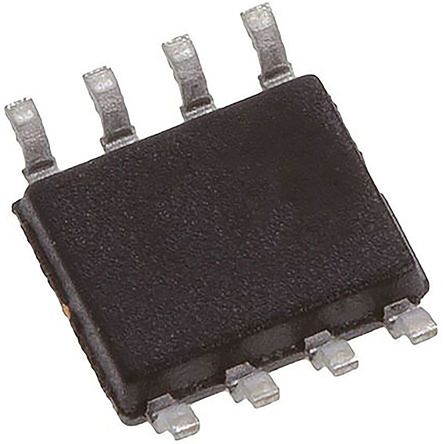

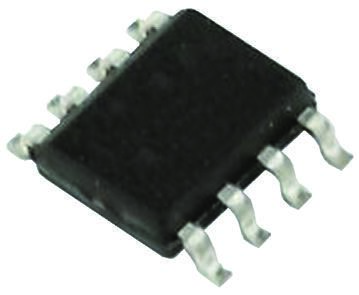

封装 SOIC-8
长度 5 mm
宽度 3.99 mm
高度 1.5 mm
封装 SOIC-8
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
FDS6984AS Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
STS8DNF3LL 意法半导体 | 功能相似 | FDS6984AS和STS8DNF3LL的区别 |
STS9D8NH3LL 意法半导体 | 功能相似 | FDS6984AS和STS9D8NH3LL的区别 |
